Standard Manual Jack Plate (up to 30hp)

Standard Manual Jack Plate (up to 30hp)

$549.00
$599.00 $549.00
Sale Sold out
Shipping calculated at checkout.

The Standard Manual Adjustable Jack Plate is designed for outboard motors up to 30hp (without factory trim and tilt), with an enhanced gear ratio for effortless, precise motor lifting.

Compatible with:

  • Outboard motors up to 30 hp, if:
    • No factory electric trim and tilt, and
    • No manual tilt gas shock assist
  • Outboard motors 0–20 hp with factory electric trim and tilt

Not Compatible with:

  • 25–30 hp motors with factory electric trim and tilt and any motor with manual tilt gas shock assist
  • Any motor with mounting brackets wider than 10 ¾ inches
  • If your motor mounting brackets are wider than 10 ¾ inches, you will need to purchase the Large Unit

In those cases, use the Large Unit instead:

  • If your motor is 25-30 hp and has factory electric trim and tilt or manual tilt gas shock assist
  • If your motor’s mounting brackets are wider than 10 ¾ inches

What is a Jack Plate for an Outboard Motor?

A jack plate is a mounting device that raises or lowers your outboard motor, providing essential adjustments to optimize boat performance. Here’s why a jack plate is an essential addition:

  1. Height Adjustment: Easily raise or lower your motor for better performance relative to the waterline.
  2. Enhanced Performance: Reduced drag increases speed, fuel efficiency, and handling.
  3. Improved Trim and Tilt: Gain finer control of motor positioning in various water conditions.
  4. Transom and Propeller Protection: Higher mounting positions protect against water and debris.
  5. Load Balancing: Adapt motor height for better boat balance and weight distribution, enhancing efficiency.

Overall, a jack plate is a valuable asset for boaters seeking peak performance and versatility from their outboard motors.

Please Note: Carefully review the product measurements to ensure compatibility with your motor. Feel free to contact us for guidance!

    Product Specifications

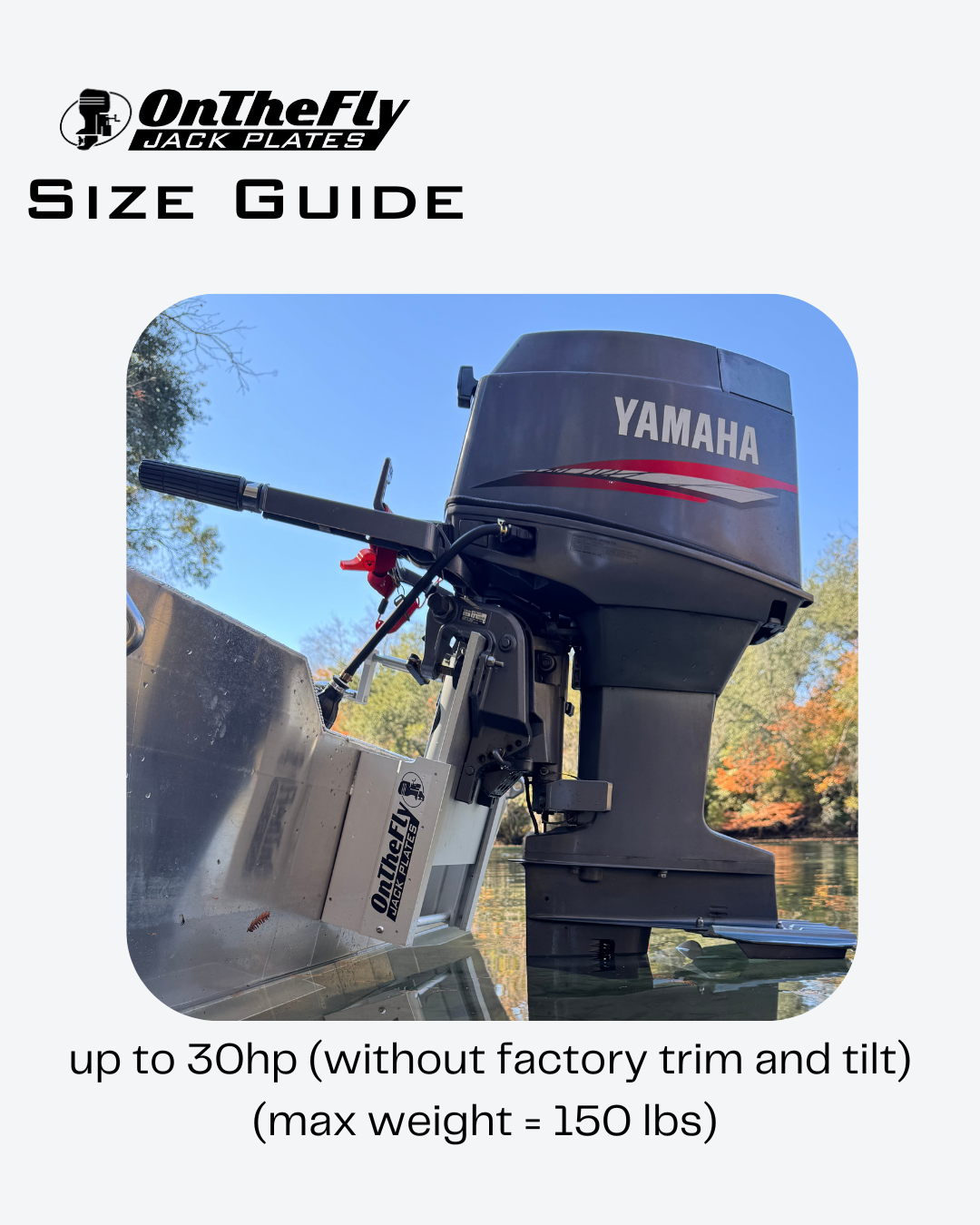

    - Compatibility: Approved for up to 30hp outboard motors (without factory trim and tilt)
    - Not compatible with 25-30hp models with factory electric trim and tilt
    - Material: High-grade marine aluminum for durability and corrosion resistance
    - Warranty: 3-year warranty on housing, 1-year warranty on the jack

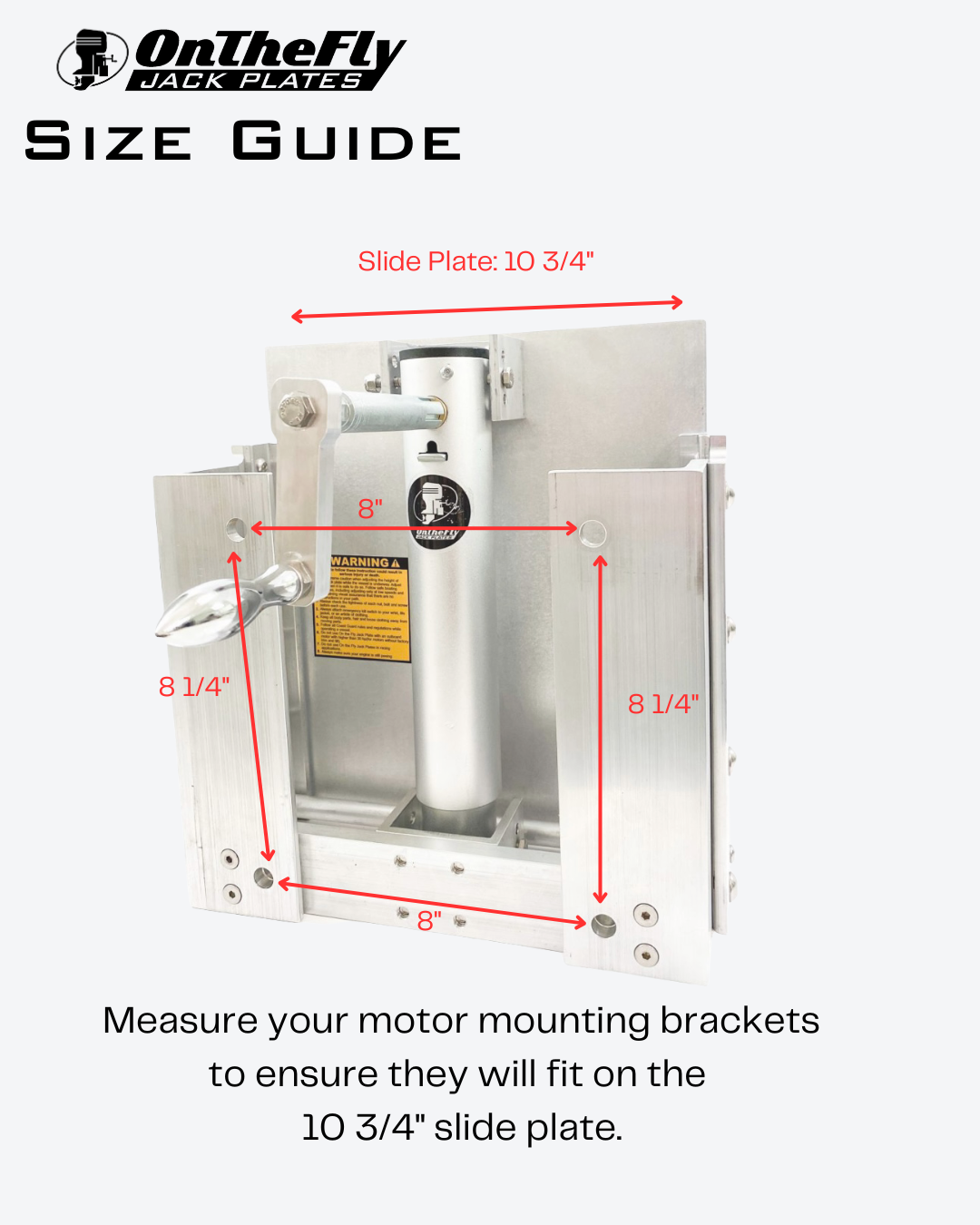

    - Easy installation: Designed for quick installation with pre-drilled holes (8 inches apart horizontally and 8¼ inches apart vertically).

    Weight and Dimension

    - Weight: 23 lbs
    - Height: 10 ½ inches
    - Width (Transom Side): 12 ½ inches
    - Width (Motor Side): 13 ¼ inches
    - Setback: 5 inches from transom to motor slide back
    - Motor Plate Height: 12 ½ inches
    - Motor Mounting Plate (Inside Brackets): 10 ¾ inches
    - Max Rise (Travel): 5 ½ inches, with potential for up to 7 ¾ inches depending on mount location.

    Accessories Not Included

    (Not Included): Transom mounting accessories
    - 4 stainless steel bolts (½” x 3 ½”)
    - 4 stainless steel lock nuts (½”)
    - 8 stainless steel flat washers (½”)
    - Motor clamp spacers
