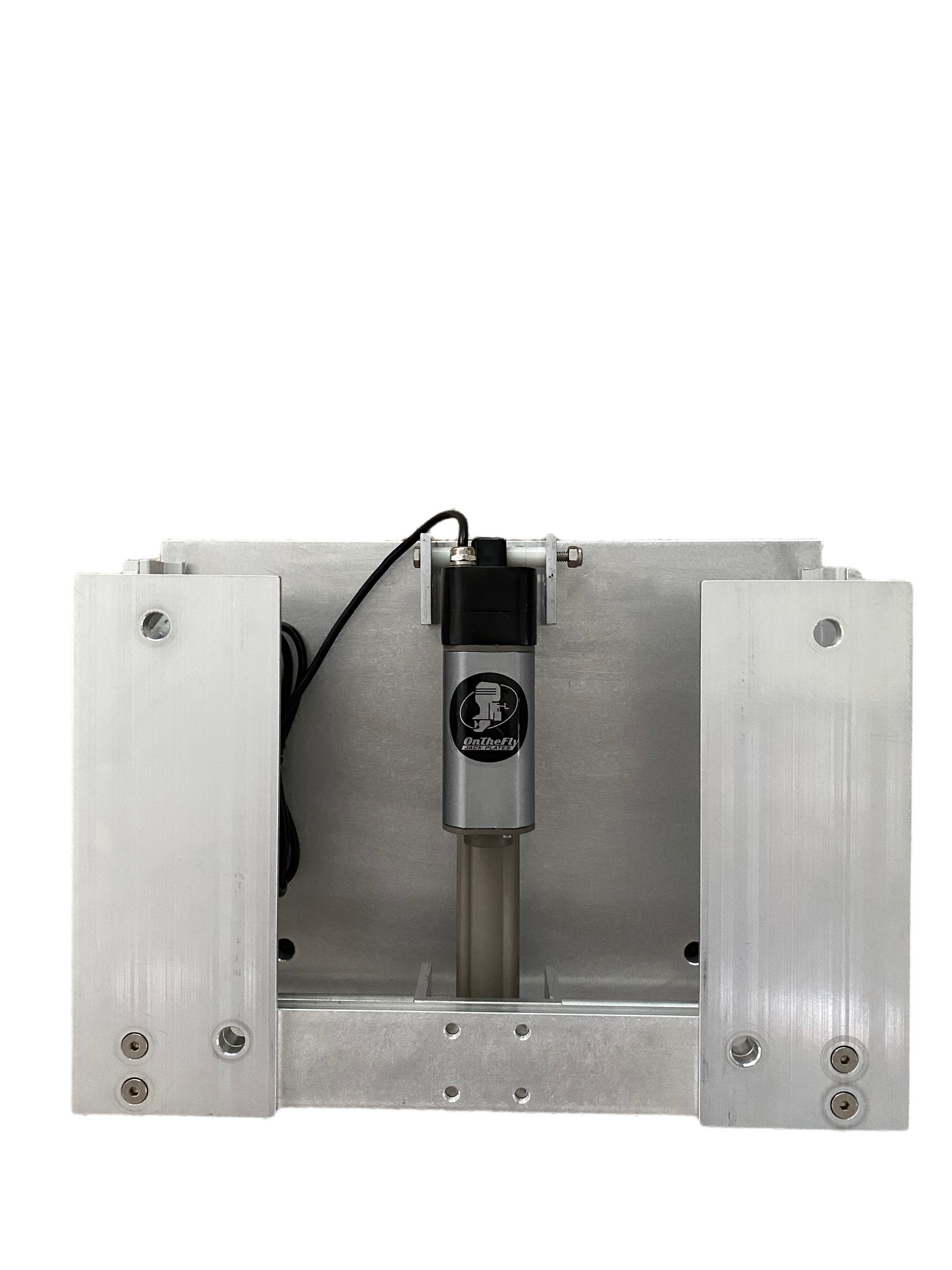

Large Electric Jack Plate (up to to 90hp)

Large Electric Jack Plate (up to to 90hp)

$1,160.00
$1,160.00
Sale Sold out
Shipping calculated at checkout.

Compatibility: This Large Electric Jack Plate is designed for outboard motors ranging from 25hp to 90hp. It is compatible with motors equipped with electric trim and tilt and follows the standard BIA bolt pattern.

The Large Electric On The Fly Jack Plate is engineered for the ultimate in convenience and performance. With the ability to raise or lower your outboard motor at the touch of a button, you can make quick adjustments in mere seconds—saving you valuable time and allowing you to focus on your boating adventure. Whether you’re navigating shallow waters or optimizing your speed, this jack plate delivers unmatched versatility.

Constructed from high-quality, marine-grade aluminum, our jack plates are built for durability and longevity. Designed for straightforward installation, it includes easy-to-follow instructions, ensuring that even first-time boaters can install it confidently.

What Is a Jack Plate for an Outboard Motor? A jack plate is a crucial mounting device that elevates or lowers your outboard motor, providing essential adjustments to enhance your boat’s performance. Here’s why a jack plate is an invaluable addition:

  1. Height Adjustment: Easily raise or lower your motor to optimize its position relative to the waterline.
  2. Enhanced Performance: Elevating the motor reduces drag, increasing speed, fuel efficiency, and handling.
  3. Improved Trim and Tilt: Gain finer control of motor positioning in various water conditions.
  4. Transom and Propeller Protection: Higher mounting positions help protect against water and debris.
  5. Load Balancing: Adjust motor height to better balance the boat and distribute weight, enhancing overall efficiency.

Overall, a jack plate is a vital asset for boaters looking to maximize their outboard motor's performance and versatility.

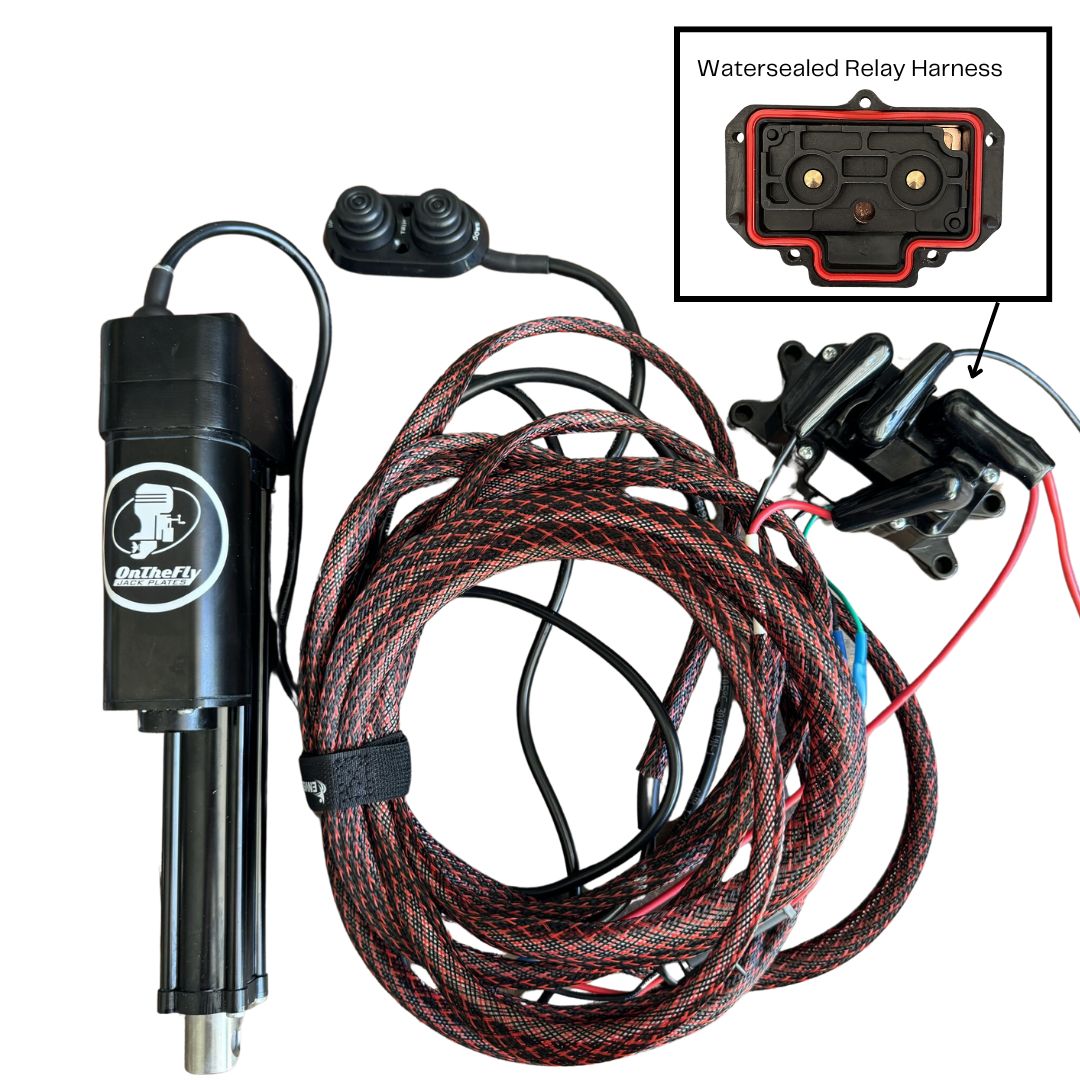

Accessories Included:

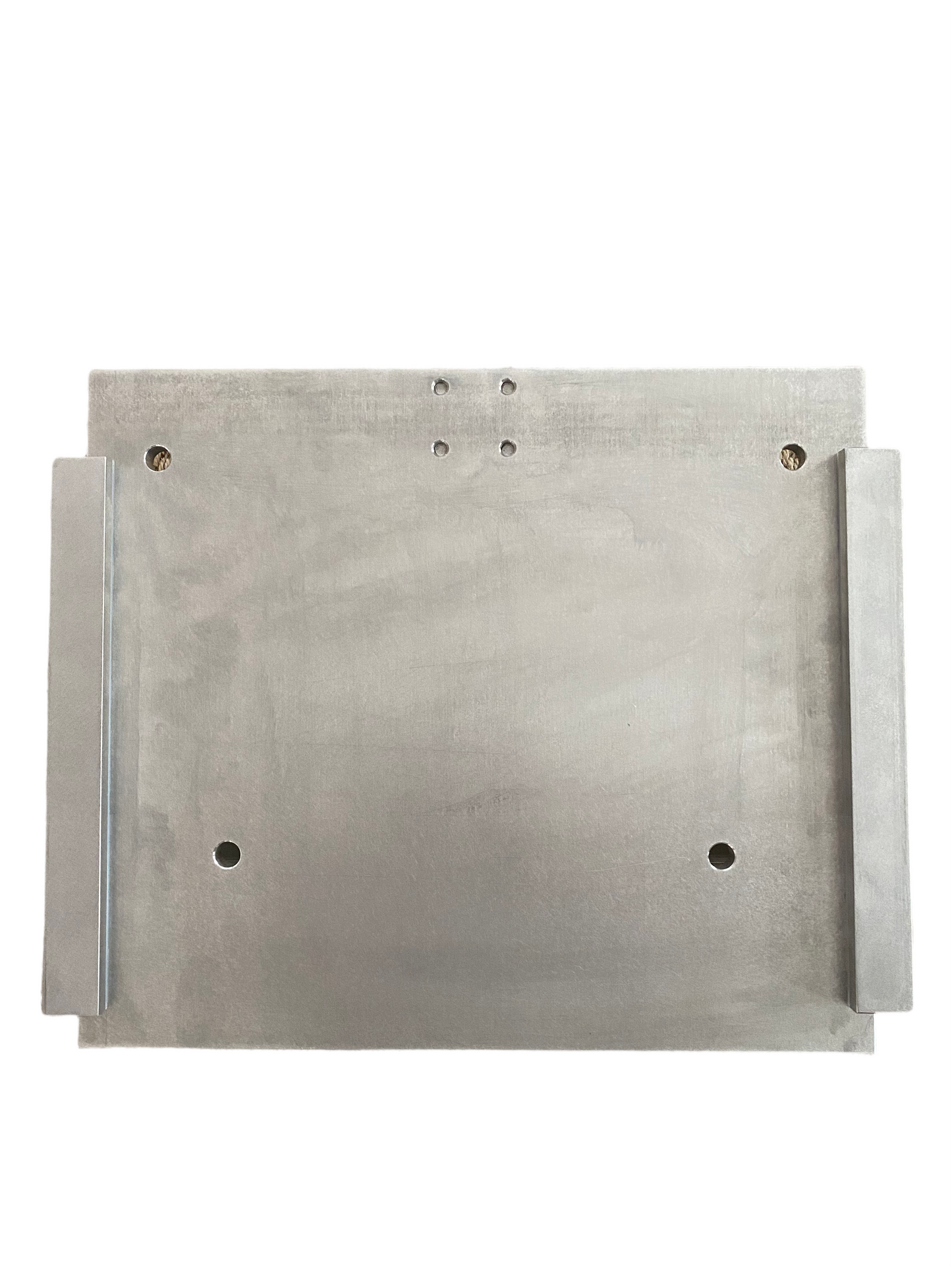

  • Jack plate housing
  • On The Fly Electric Actuator

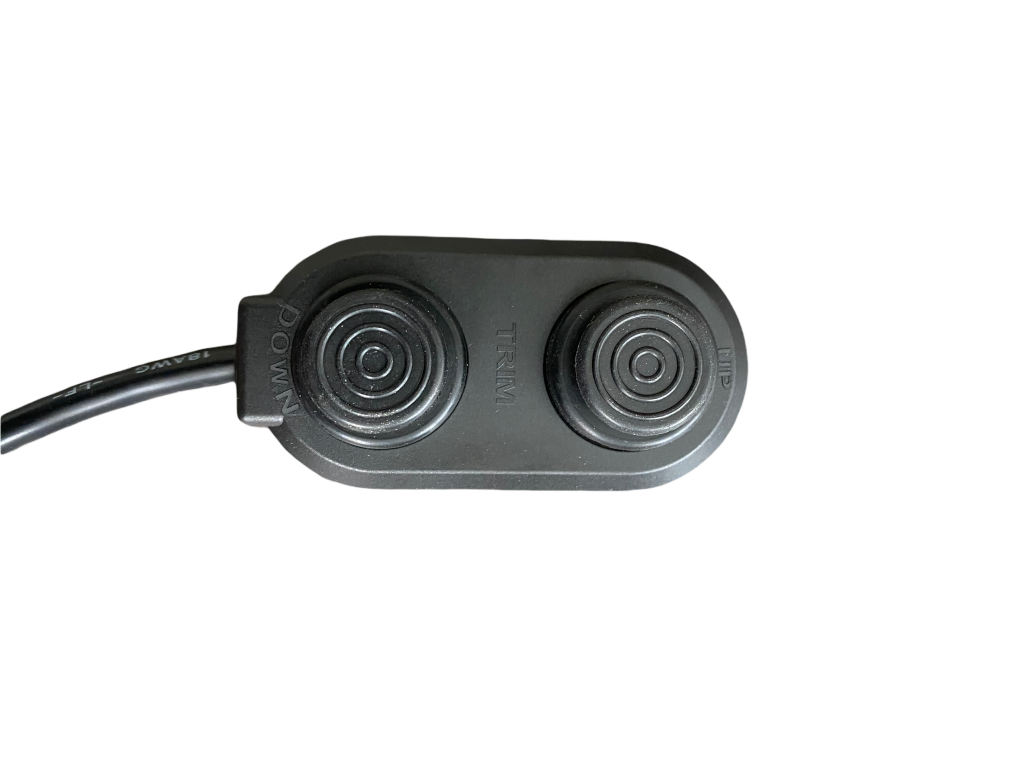

  • Up/Down switch
  • Relay harness

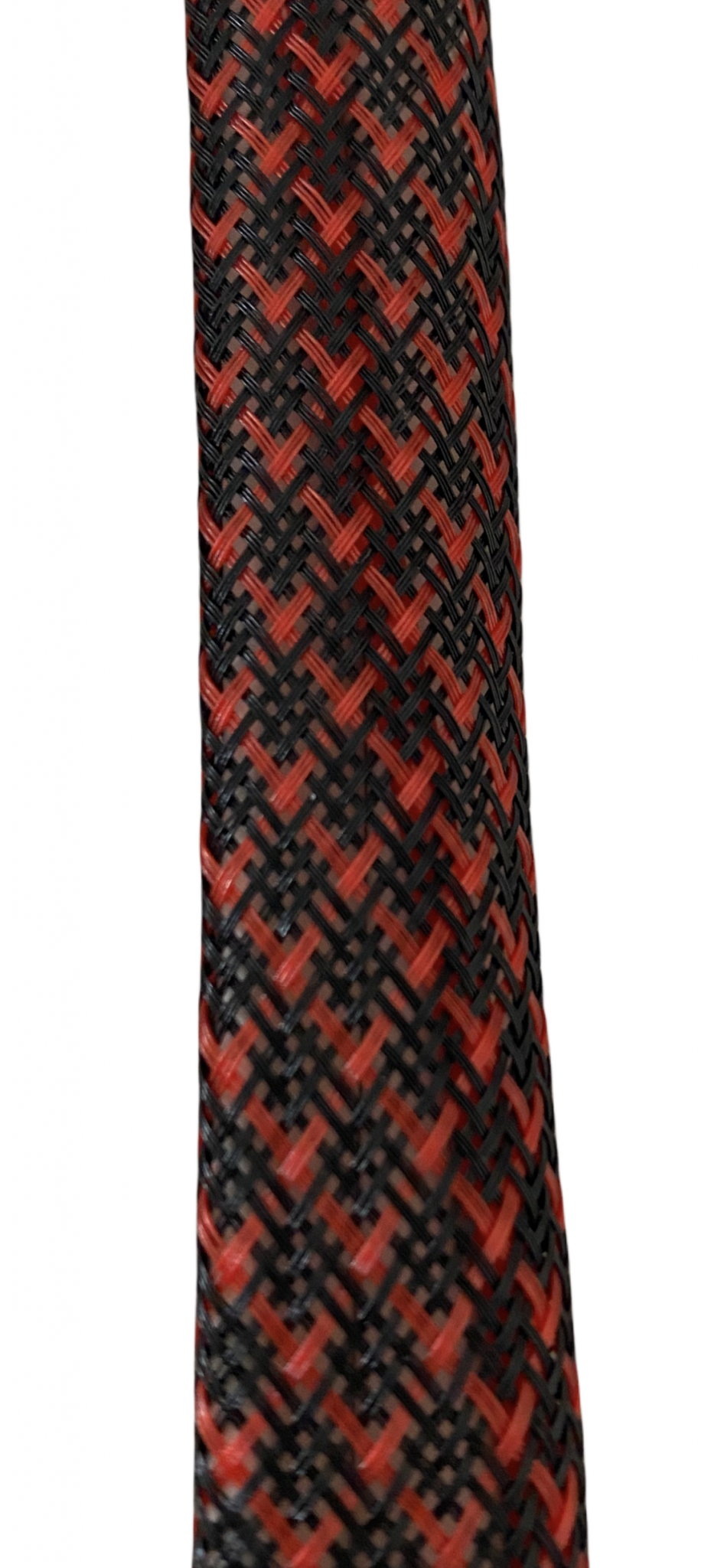

  • 10 feet of wiring from the electric actuator to the battery

Why Choose On The Fly Jack Plates? Our jack plates are crafted with boaters in mind, delivering unmatched speed and simplicity, so every second counts on the water!

Product Specifications

- Compatibility: Approved for outboard motors up to 90hp with electric trim and tilt or standard BIA bolt patterns.
- Construction: Robust electric actuator mounted inside the jack plate housing, made in the USA.
- Warranty: 3-year warranty on housing, 1-year warranty on the electric actuator.
- Pre-Drilled Mounting: Fits the BIA bolt pattern for quick and easy mounting.

Weight and Dimension

- Weight: 30 lbs
- Height: 10 ½ inches
- Width (Transom Side): 16 ⅛ inches
- Width (Motor Side): 17 inches
- Setback: 5 ¼ inches (length from the transom to the motor slide back)
- Motor Plate Height: 13 ¾ inches
- Max Rise (Travel): 6 inches of travel, with potential for up to 8 inches depending on actuator mounting location.

Accessories Not Included

(Not Included): Transom mounting accessories
- 4 stainless steel bolts (½” x 3 ½”)
- 4 stainless steel lock nuts (½”)
- 8 stainless steel flat washers (½”)
- Motor clamp spacers

View full details
Product Product subtotal Quantity Price Product subtotal
Large Electric Jack Plate (up to to 90hp)
Large Electric Jack Plate (up to to 90hp)
Large Electric Jack Plate (up to to 90hp)
$1,160.00/ea		 $0.00
$1,160.00/ea $0.00

Complete Your Order With Add-On Accessories

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
d
dan jernigan

I love it so far. Only used it twice.

b
brian allen

It's very nice I love it just wish it was a little faster operating

B
Brian B.

Very easy to install pre-drilled holes or fantastic I have had no problems with it nothing but positive things to say about on the fly Jack plate. Thank you for a great product

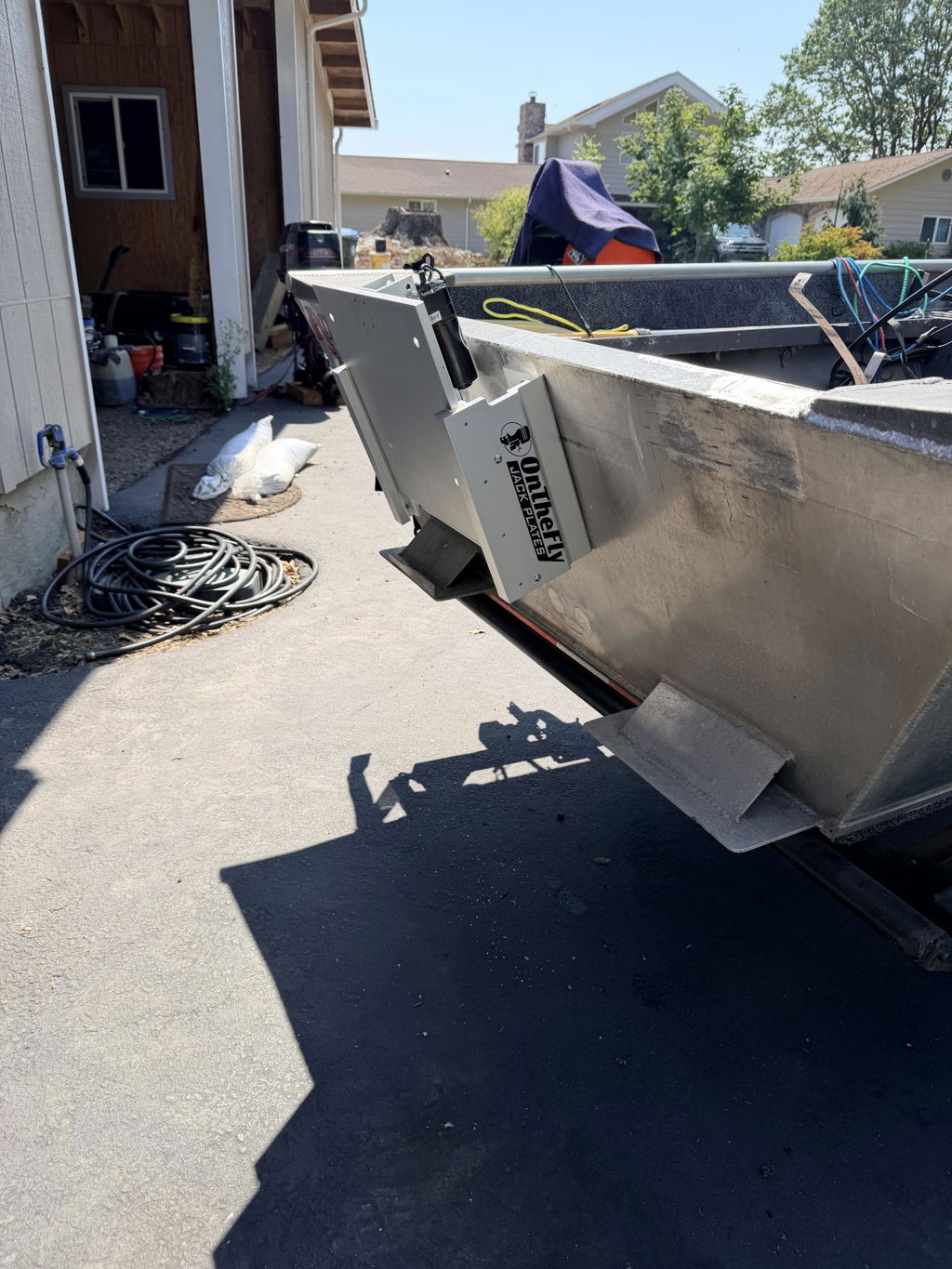

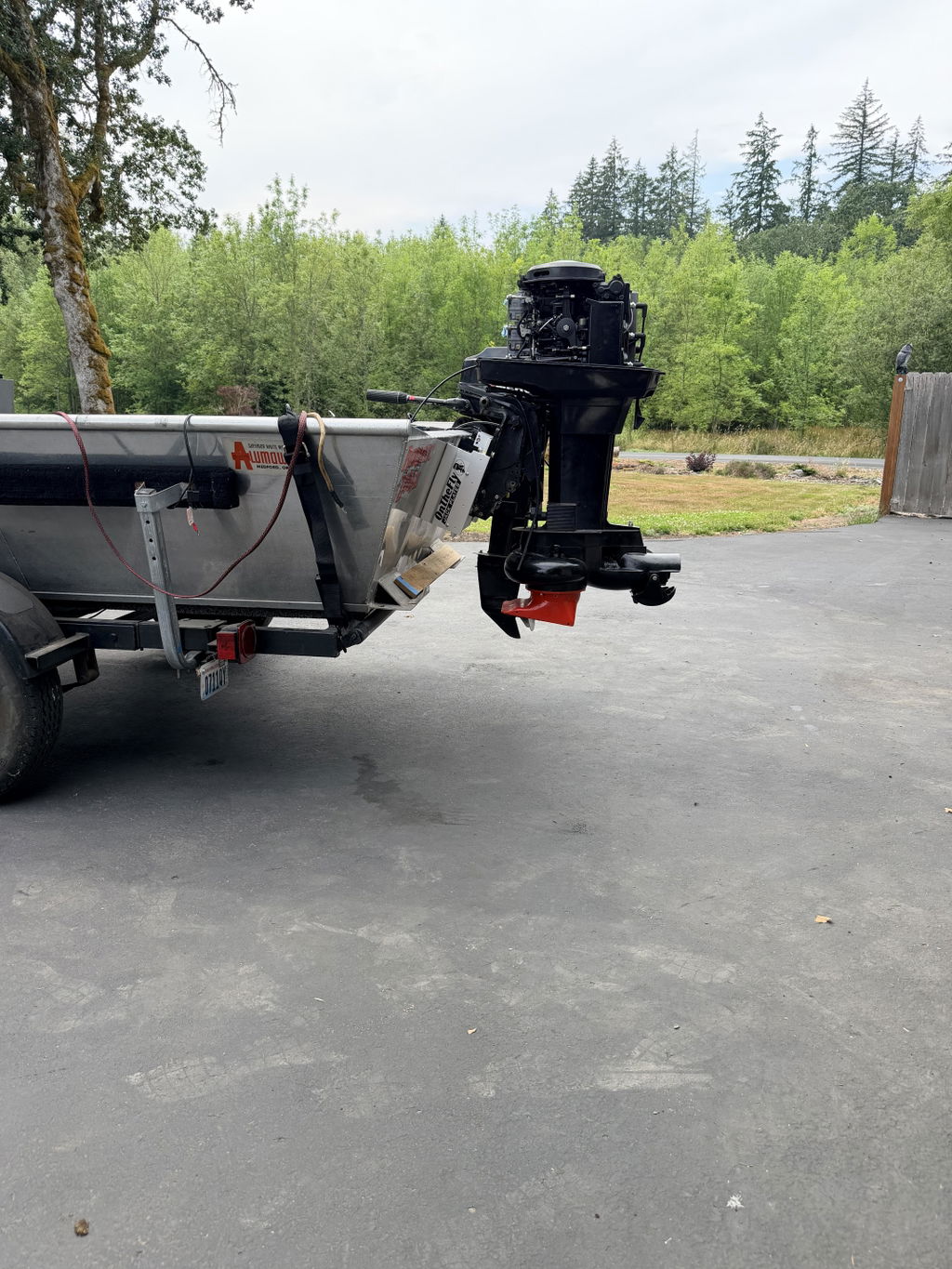

User picture User picture User picture User picture
