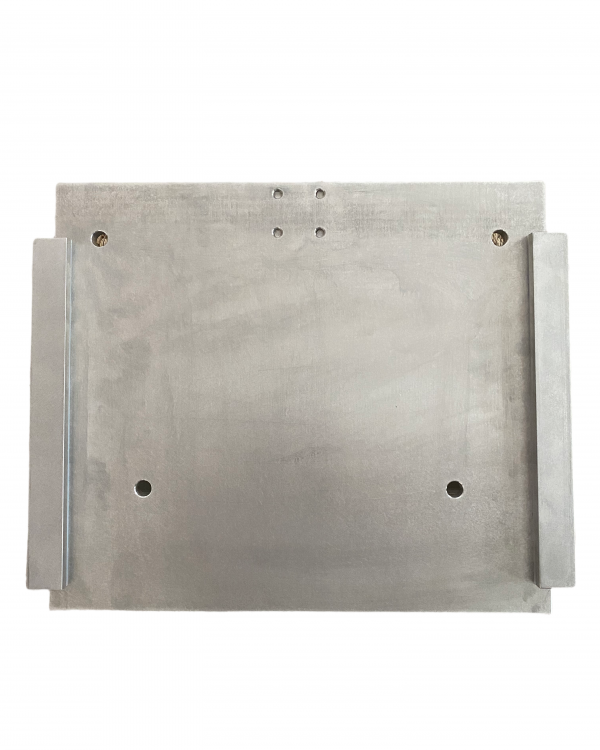

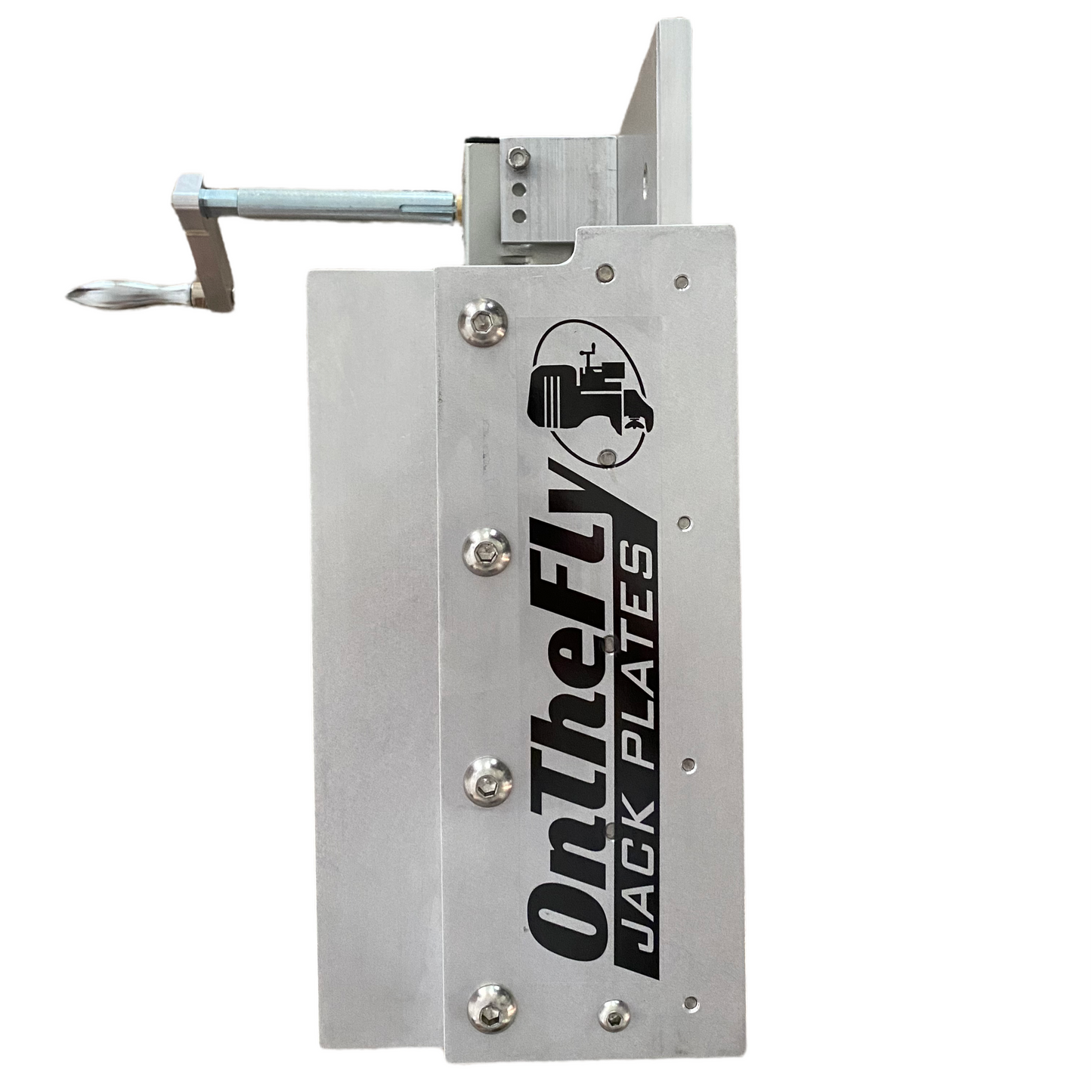

Large Manual Jack Plate (up to 50hp motors)
Large Manual Jack Plate (up to 50hp motors)

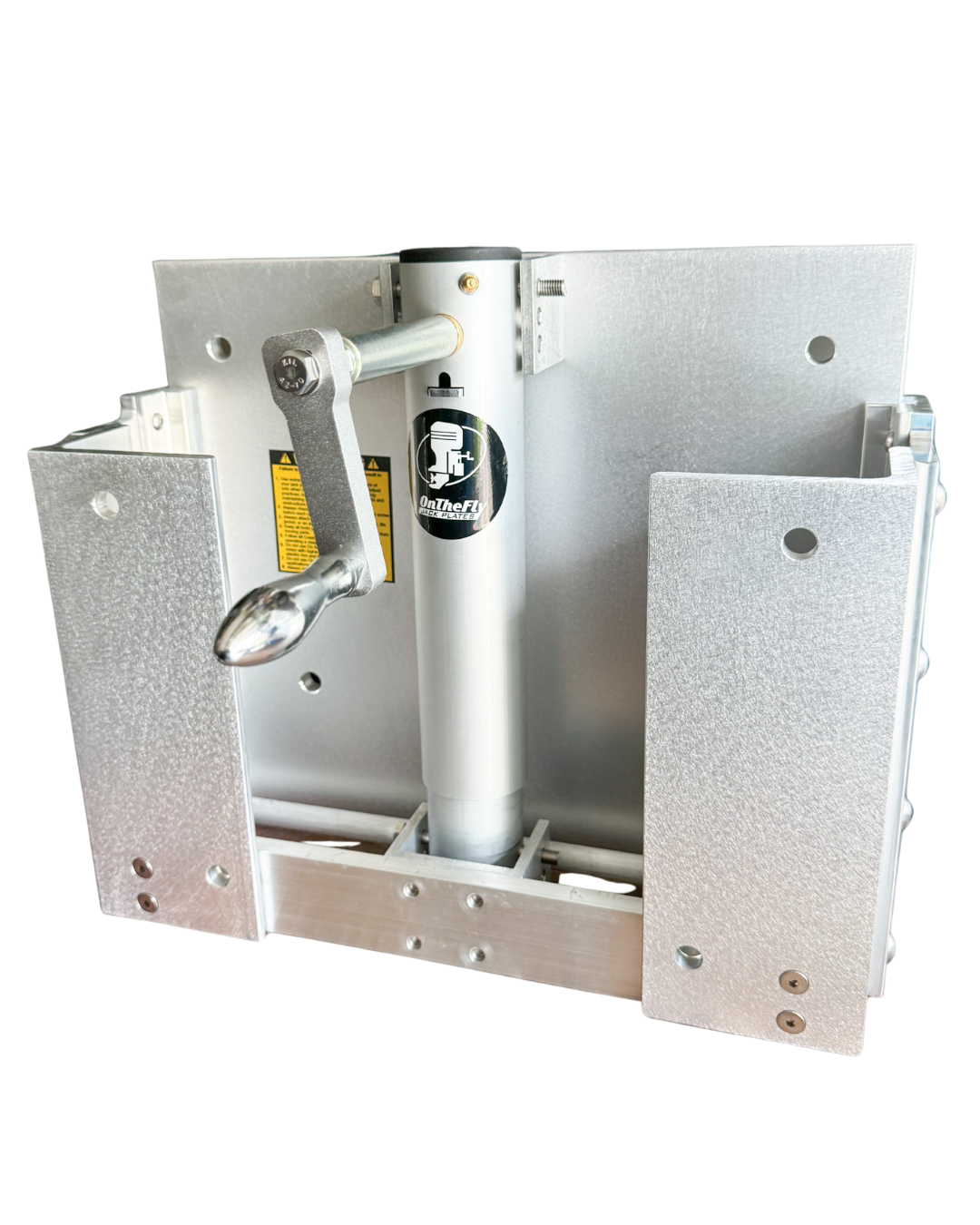

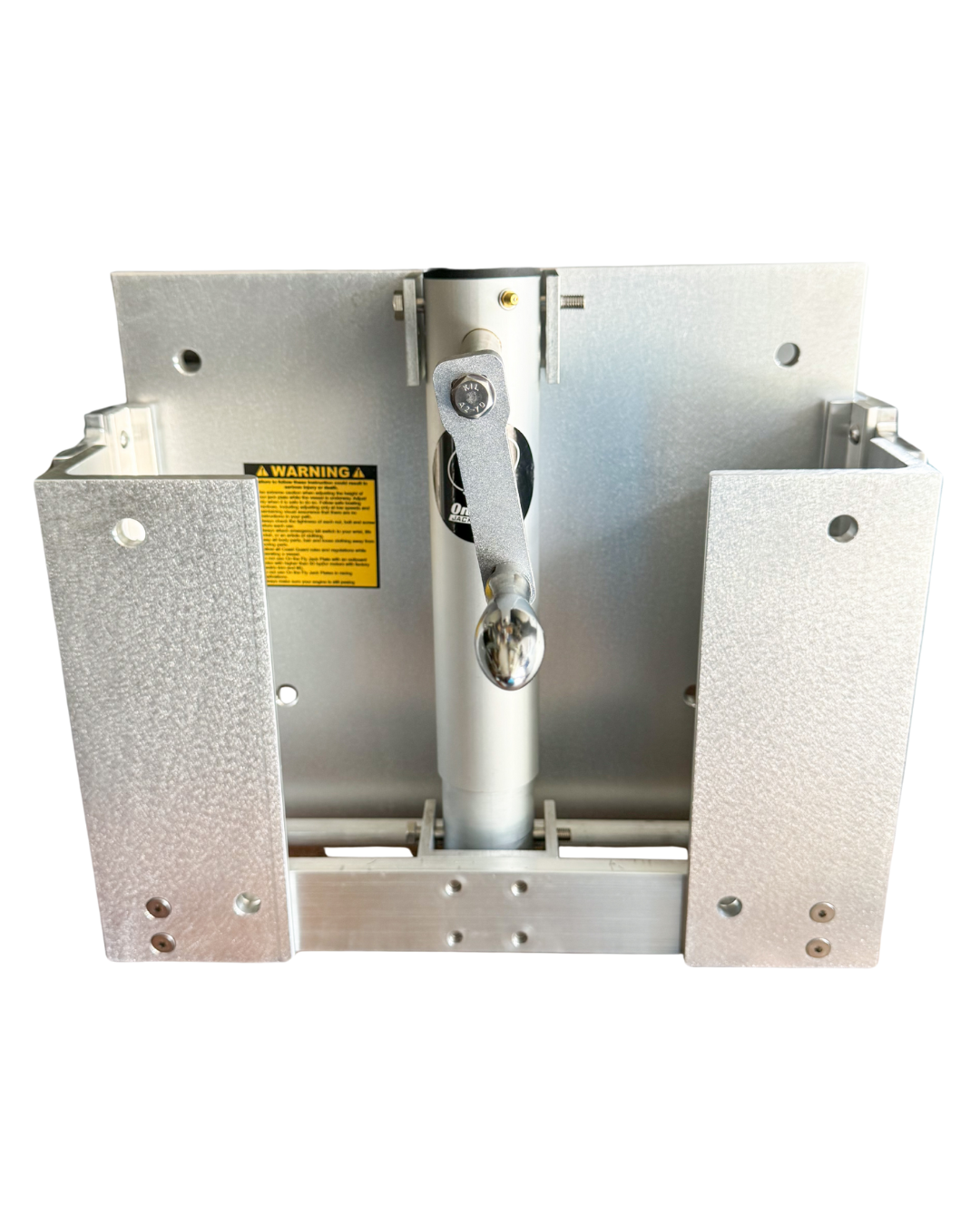

The Large Manual Jack Plate, designed for outboard motors up to 50hp with trim and tilt capabilities. Featuring a newly upgraded design with a higher gear ratio, this jack plate ensures effortless motor lifting for enhanced performance on the water.
What Is a Jack Plate for an Outboard Motor?
A jack plate is a mounting device that elevates or lowers your outboard motor, providing essential adjustments to optimize boat performance. Here’s why a jack plate is an essential addition:
- Height Adjustment: Easily raise or lower your motor for better performance relative to the waterline.
- Enhanced Performance: Reduced drag increases speed, fuel efficiency, and handling.
- Improved Trim and Tilt: Gain finer control of motor positioning in various water conditions.
- Transom Protection: Higher mounting positions protect against water and debris.
- Load Balancing: Adjust motor height for better boat balance and weight distribution, enhancing efficiency.
Overall, a jack plate is a valuable asset for boaters seeking peak performance and versatility from their outboard motors.
Please Note: Carefully review the product measurements to ensure compatibility with your motor. Feel free to contact us for guidance!
Product Specifications
Product Specifications

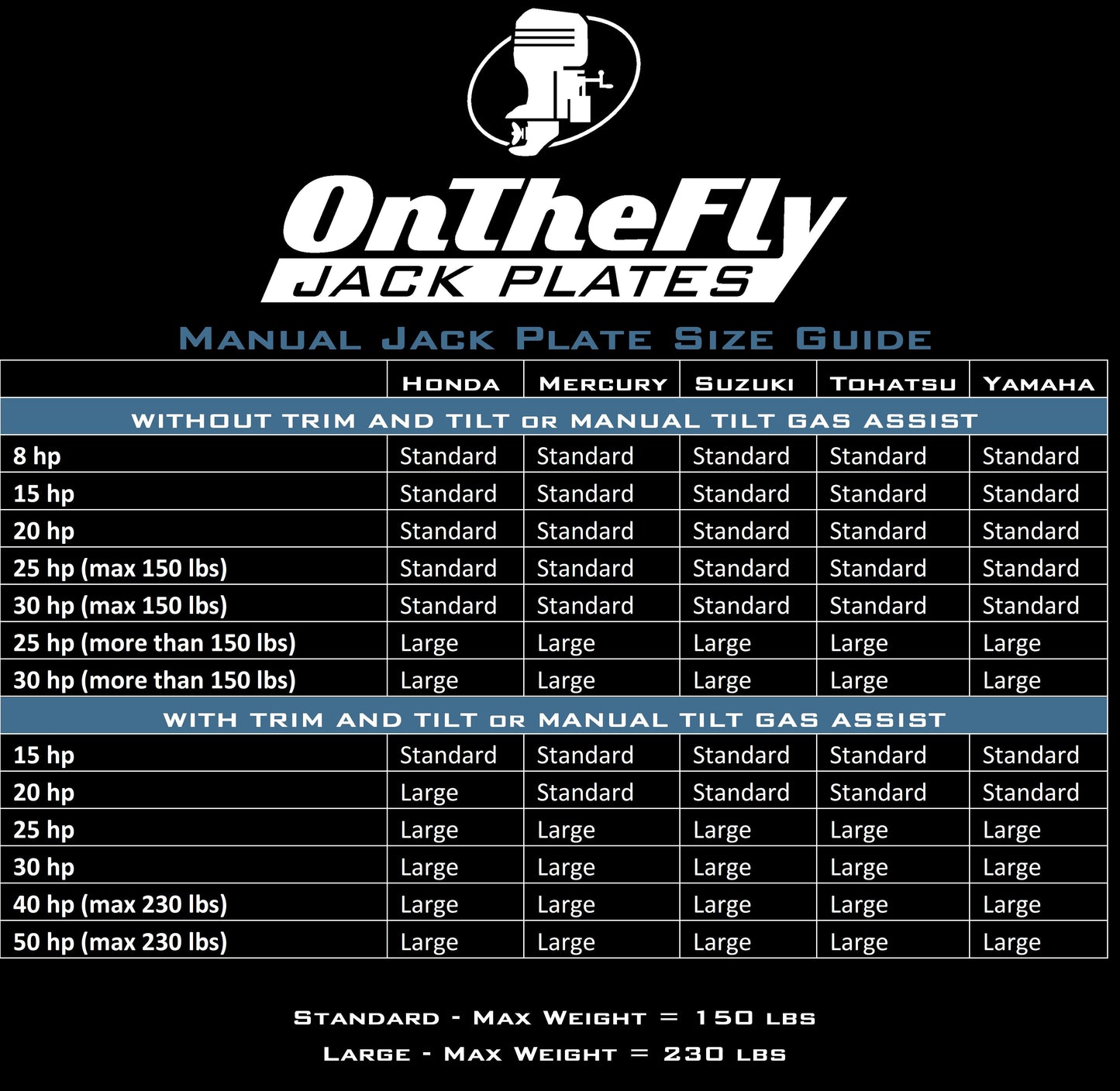

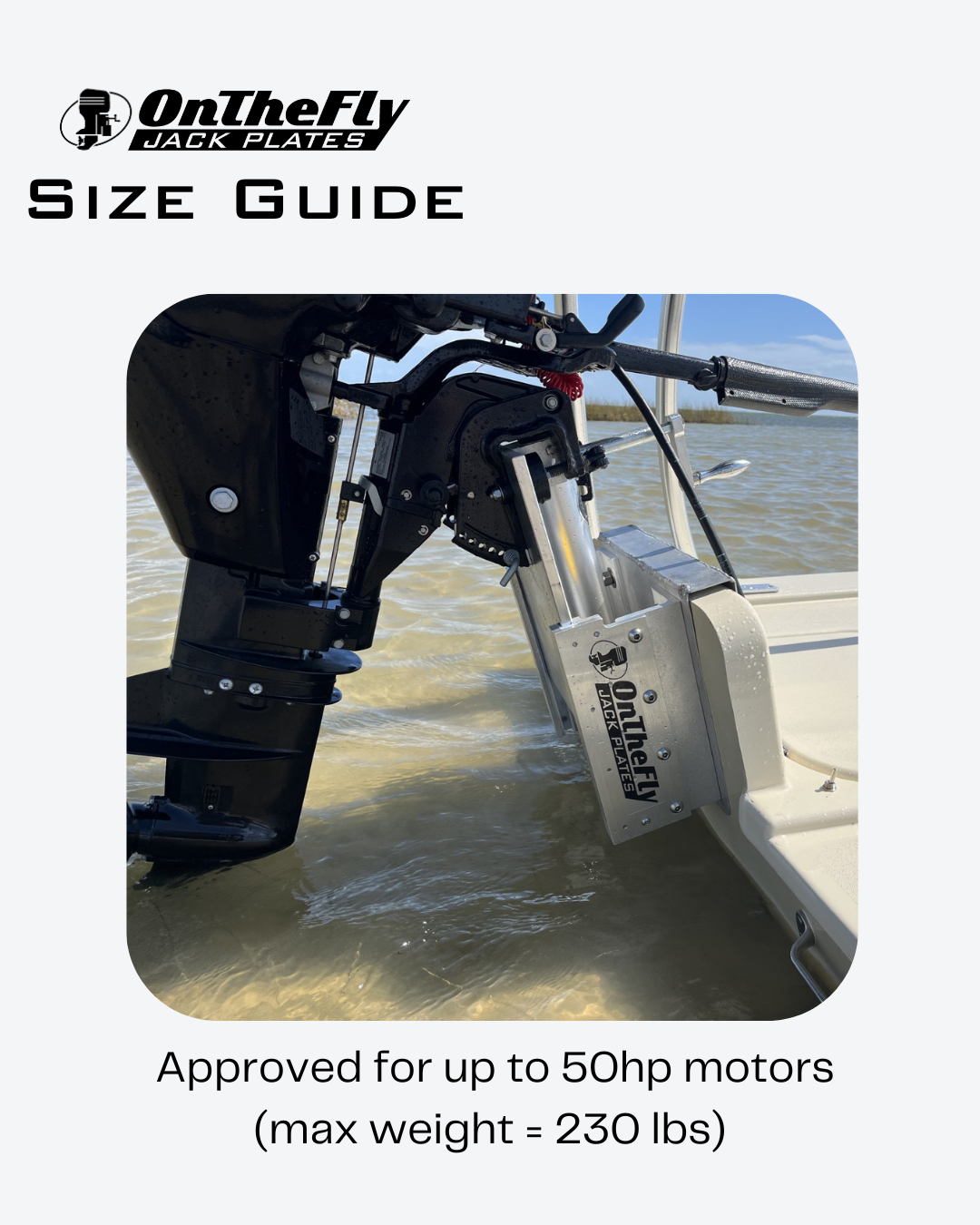

- Compatibility: Approved for up to 50hp outboard motors (with factory trim and tilt).
- Material: High-grade marine aluminum for durability and corrosion resistance
- Warranty: 3-year warranty on housing, 1-year warranty on the jack.
- Pre-Drilled Mounting: Transom mounting for quick and easy setup.

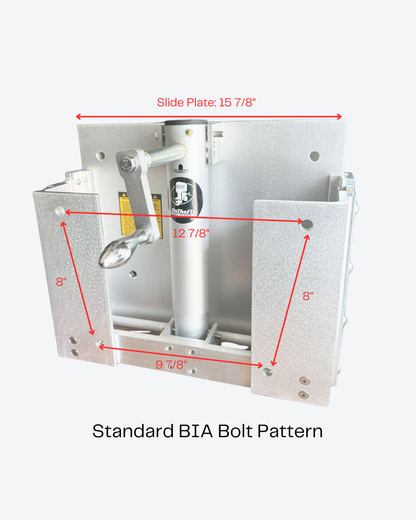

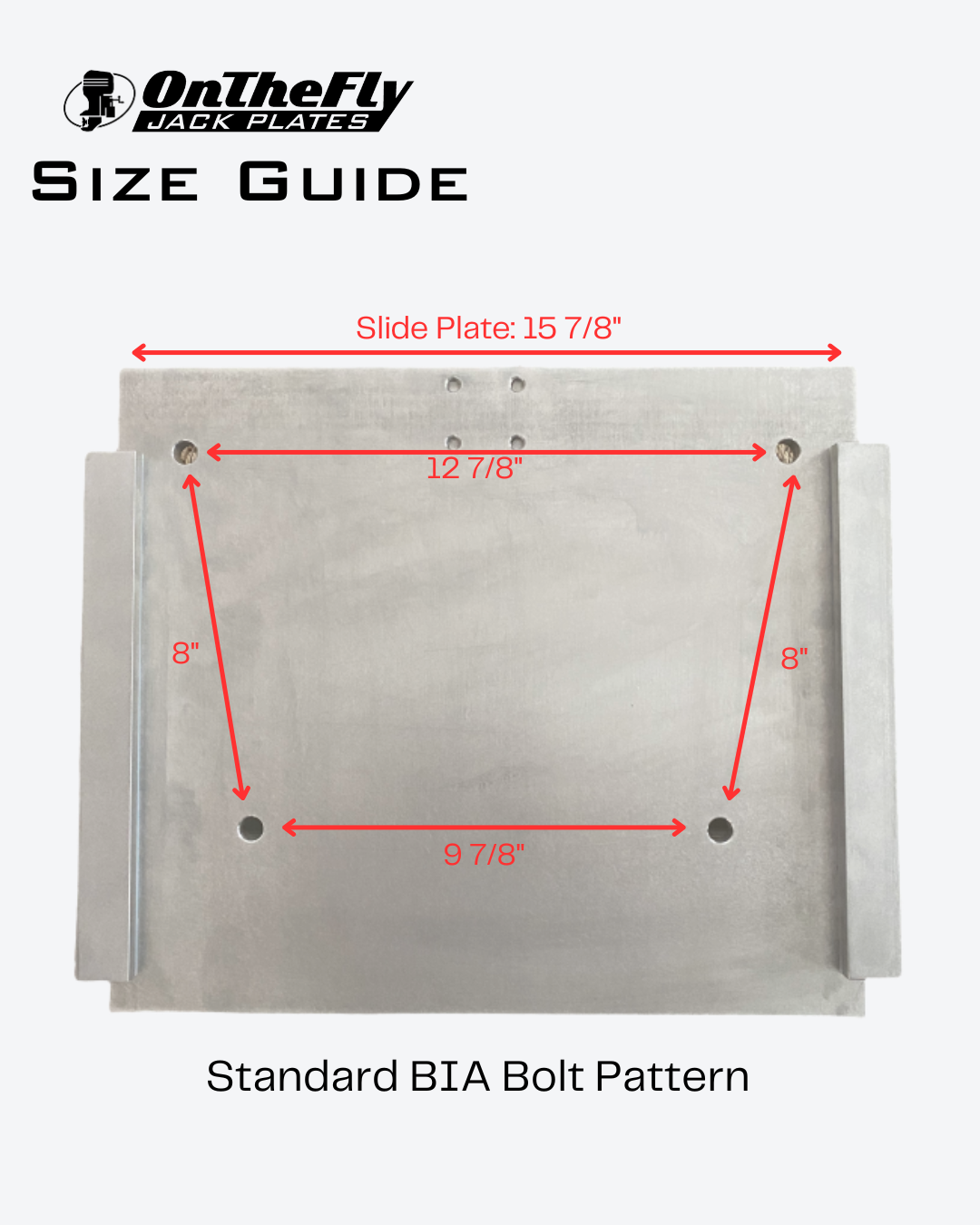

Weight and Dimension
Weight and Dimension
- Weight: 30.6 lbs
- Height: 10 ½ inches
- Width (Transom Side): 16 1/8 inches
- Width (Motor Side): 17 inches
- Setback: 5 ¼ inches from the transom to the motor slide back
- Motor Plate Height: 13 ¾ inches
- Max Rise (Travel): 5 ½ inches, with potential for up to 7 ¾ inches depending on mount location.
Accessories Not Included
Accessories Not Included
(Not Included): Transom mounting accessories
- 4 stainless steel bolts (½” x 3 ½”)
- 4 stainless steel lock nuts (½”)
- 8 stainless steel flat washers (½”)
- Motor clamp spacers
