Large Plug and Play Electric Jack Plate (up to 90hp)

$1,350.00

Sale Sold out

Shipping calculated at checkout.

Not Sure? Confirm Your Fit With Our Jack Plate Finder Quiz

Adjust your outboard motor height from anywhere on the boat with the push of a button. The Large Electric On The Fly Jack Plate includes a wireless remote and plug-and-play connections for convenient installation and effortless on-water adjustments.

Confirm Compatibility Before Ordering

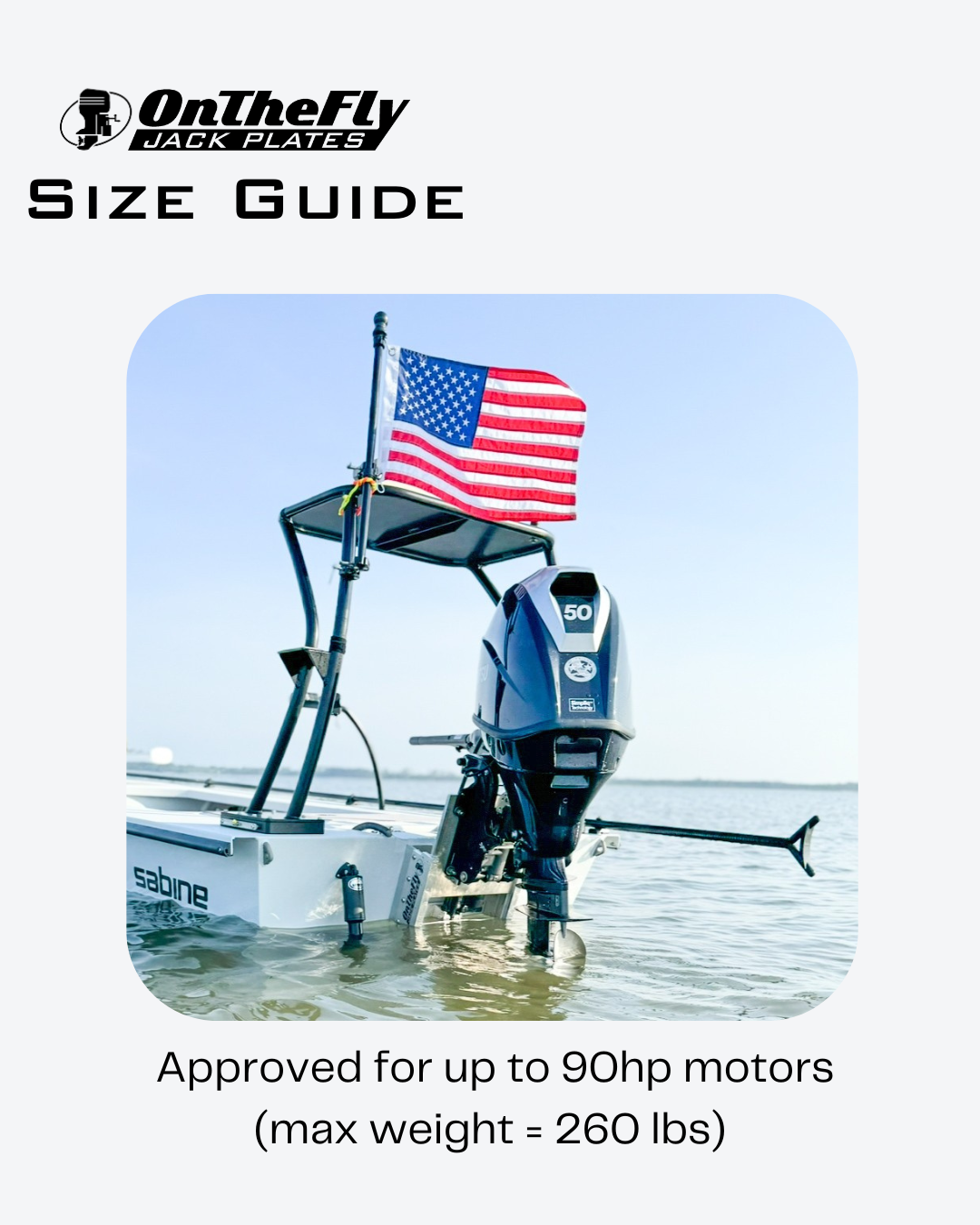

Designed for 25–90 HP outboard motors
Supports motors weighing up to 260 lbs
Compatible with motors equipped with electric trim and tilt

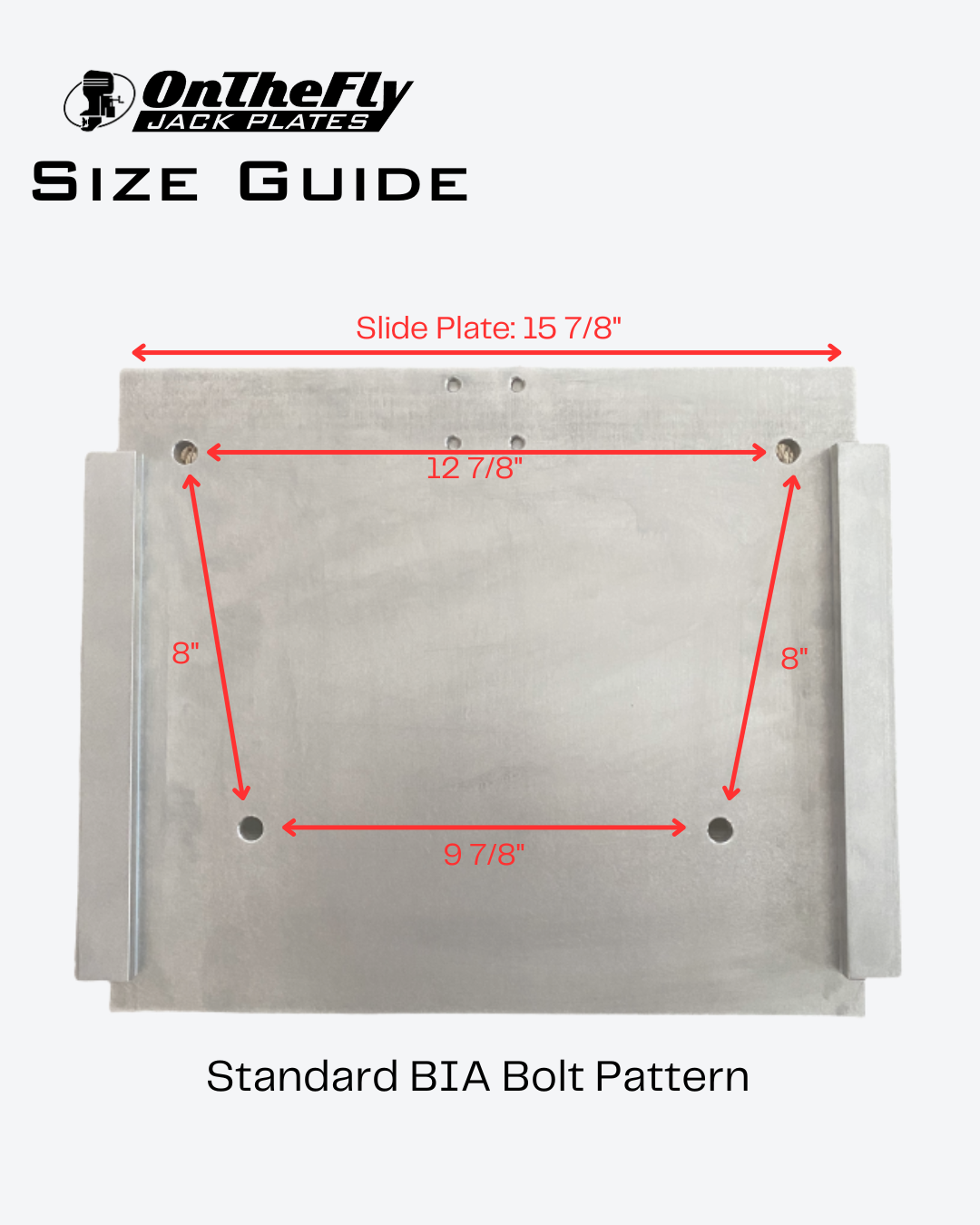

Pre-drilled for the standard BIA bolt pattern

Simple Plug-and-Play Installation

Mount the jack plate, connect it to the battery case with the quick connectors, and you’re ready for the water—no complicated wiring required.

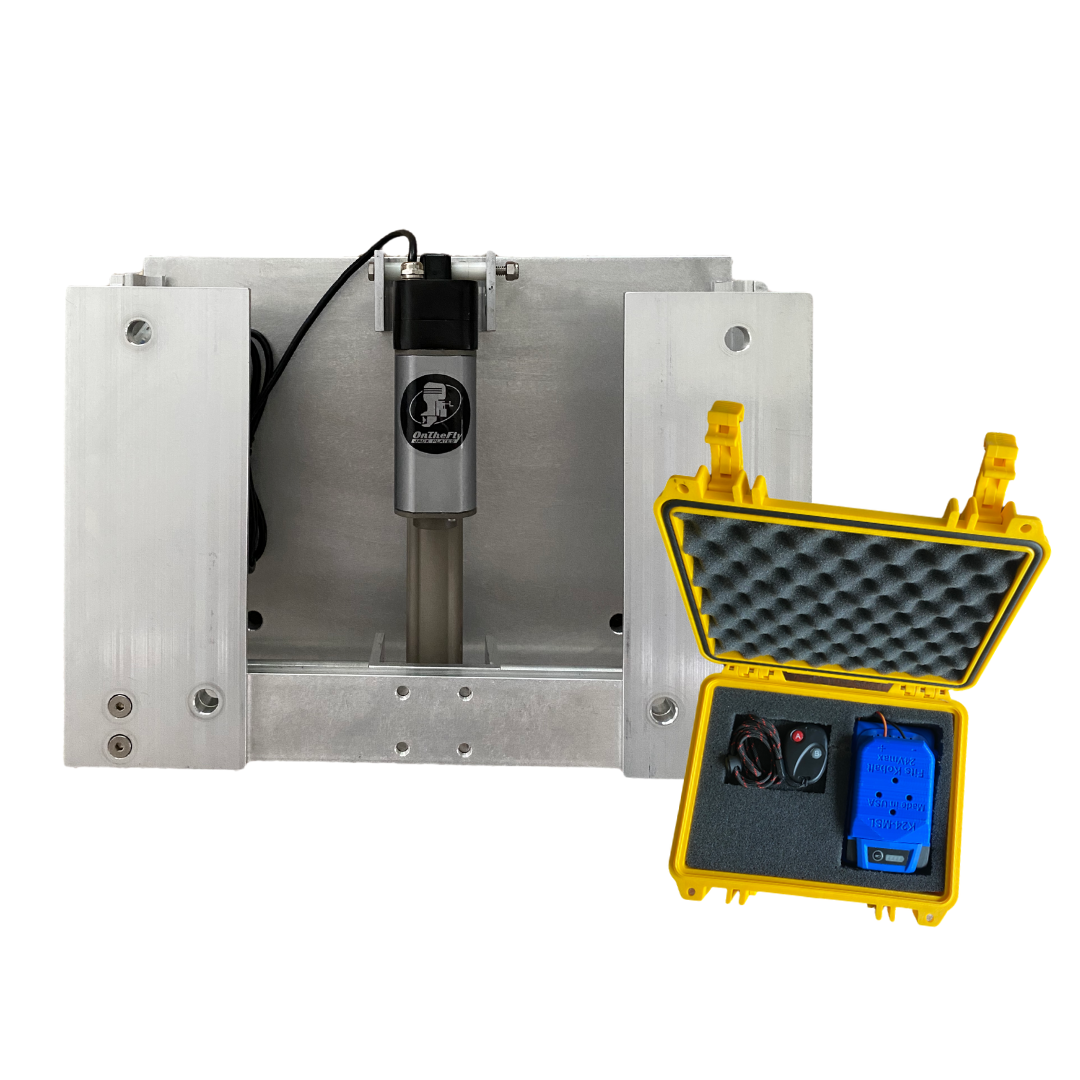

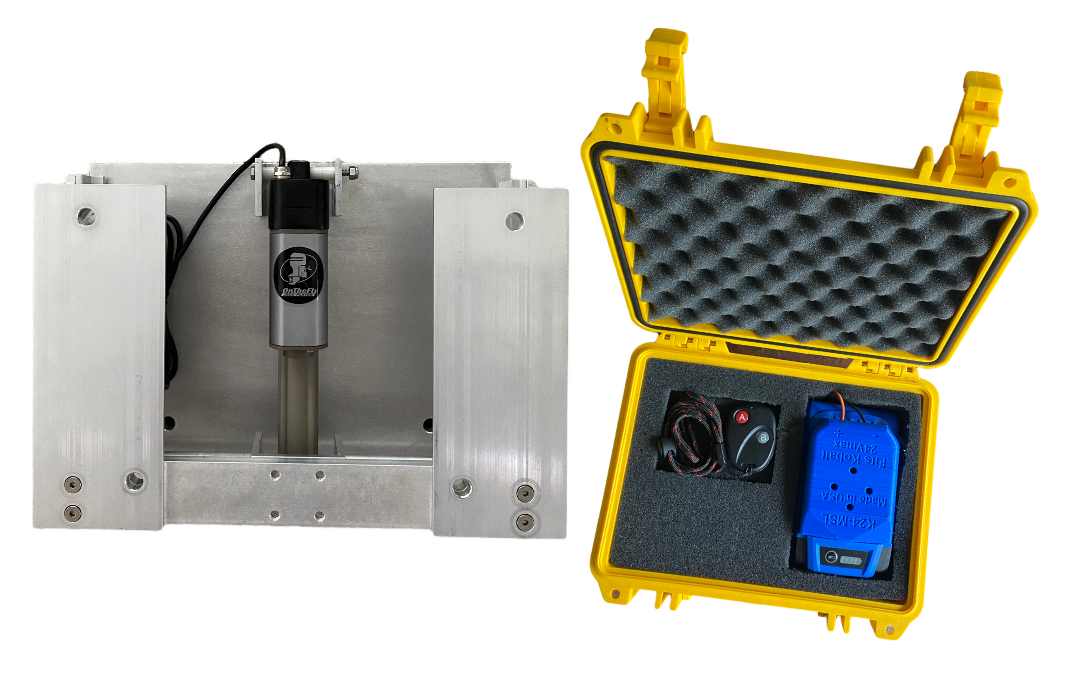

Included With Your Jack Plate:

Large jack plate housing
On The Fly electric actuator

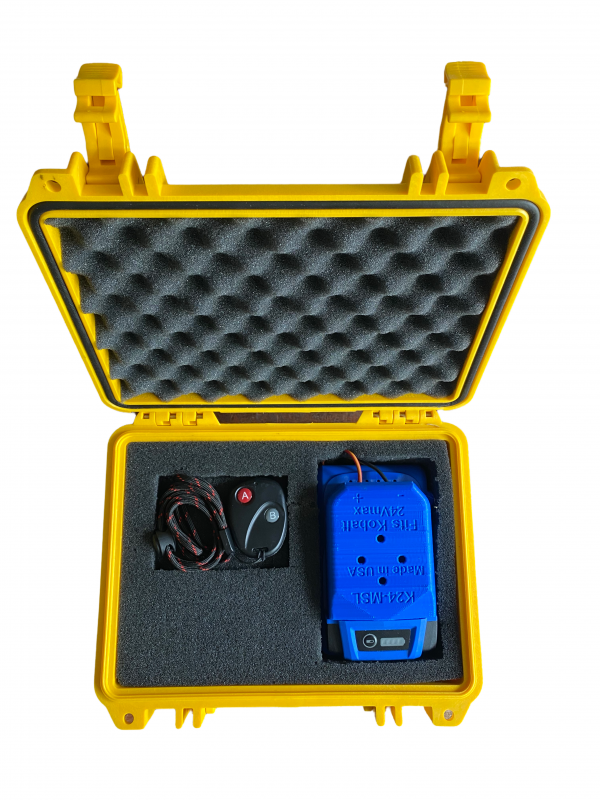

Water-resistant wireless remote
Waterproof Pelican case
Wireless remote receiver
24V battery
Battery charger
Quick-connect wiring

Key Benefits

Adjust your motor height at the push of a button
Control the jack plate from anywhere on the boat
Make quick adjustments while on the water
Complete battery-powered system
No connection to your boat’s electrical system required
Straightforward plug-and-play setup

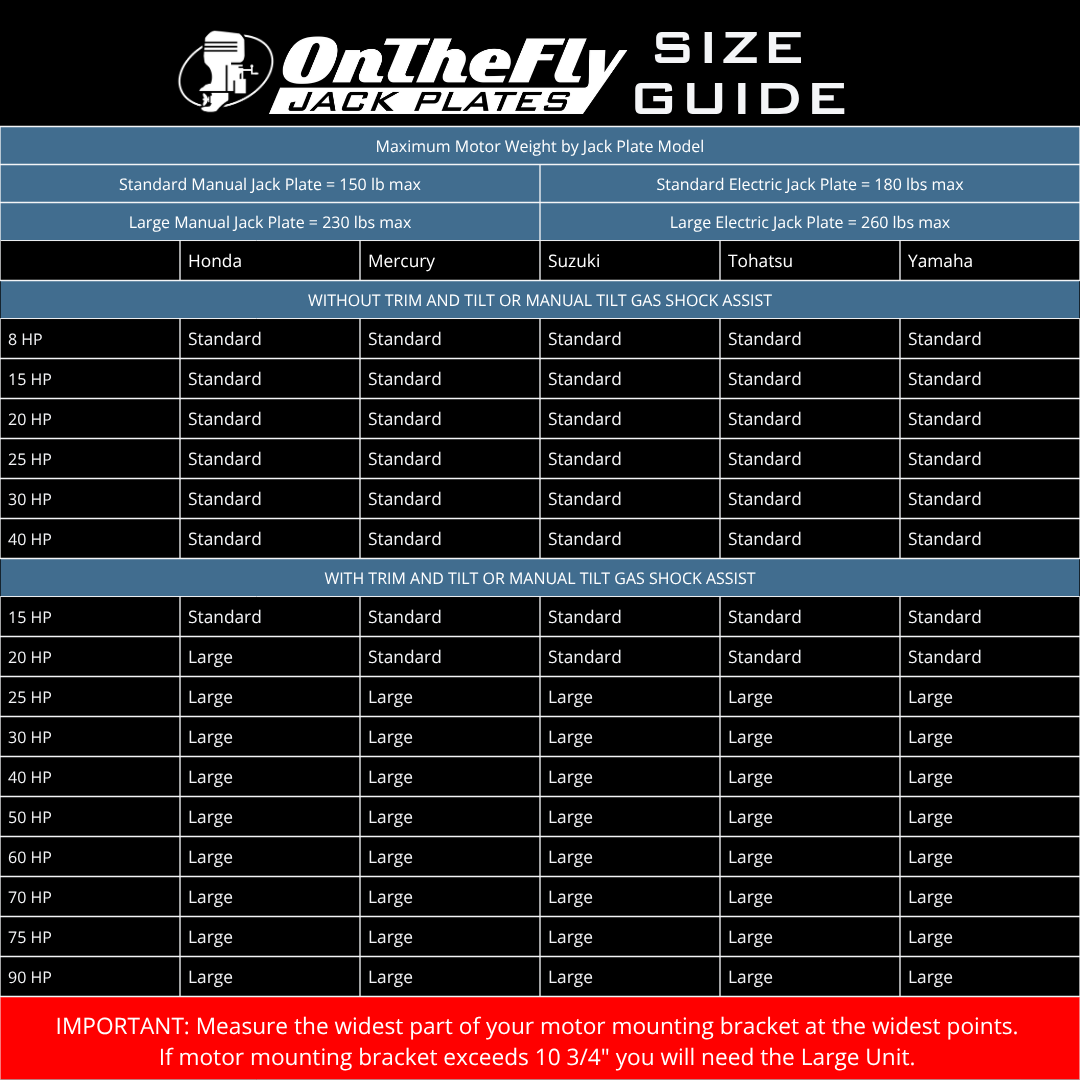

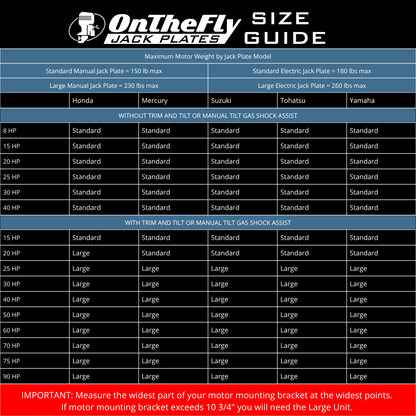

Important: Carefully review the motor weight, mounting pattern and product measurements before ordering. Not sure which unit fits? Take our Jack Plate Finder Quiz or call 850-339-4781 for help.

Product Specifications

- Compatibility: Designed for 25–90 HP outboard motors with factory electric trim and tilt and a standard BIA mounting pattern
- Maximum Motor Weight: 260 lbs
- Protected Electric Actuator: Securely mounted inside the jack plate housing for a clean appearance and added protection
- Pre-Drilled for Convenience: The jack plate comes pre-drilled with BIA bolt pattern for transom mounting and motor mounting plate, ensuring a hassle-free installation process.
- Warranty: 3-year jack plate housing warranty and 1-year electric actuator warranty

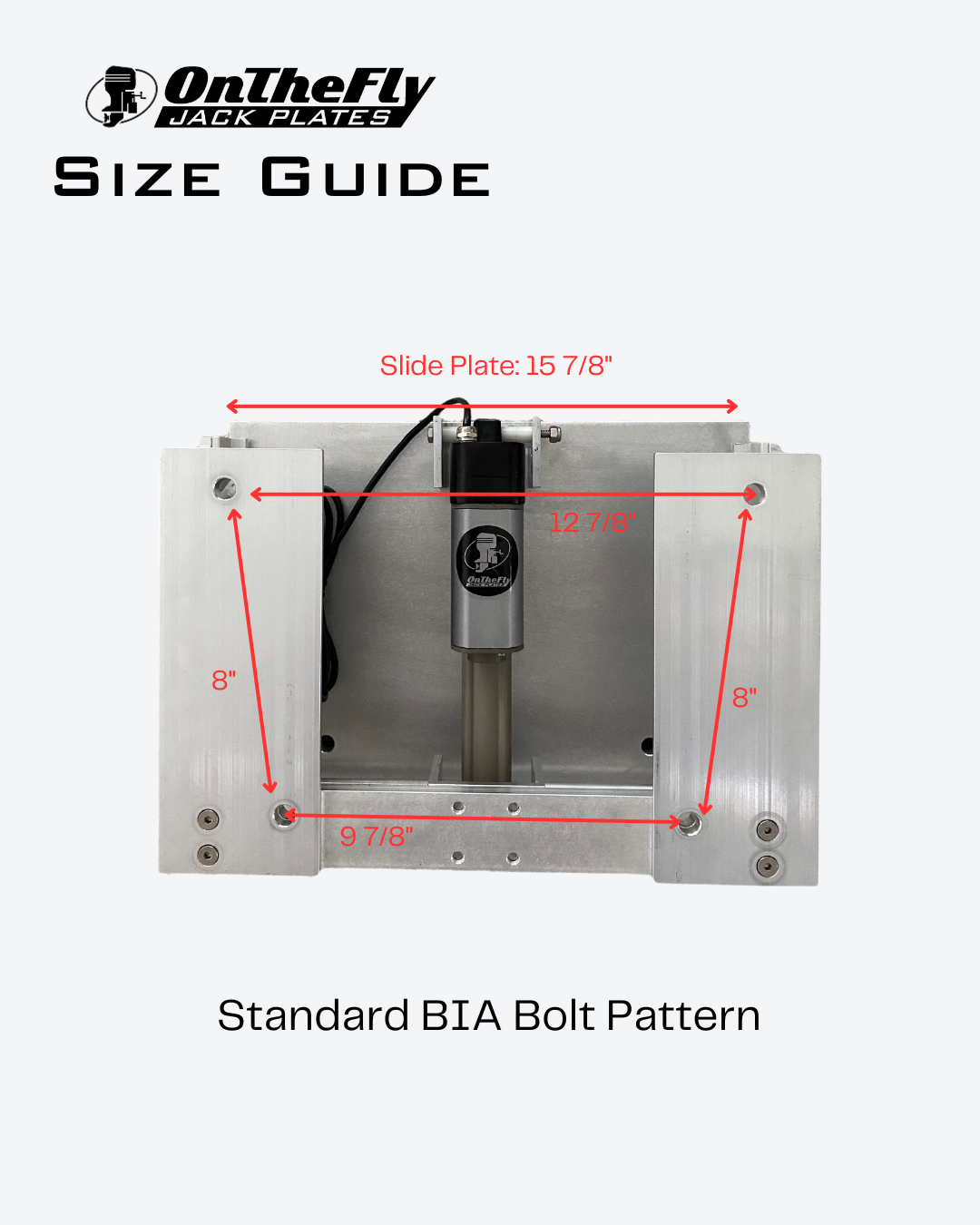

Weight and Dimension

- Jack Plate: 23 lbs
- Battery Case: 4 lbs
- Height: 10 ½ inches
- Width (Transom Side): 16 ⅛ inches
- Width (Motor Side): 17 inches
- Setback/Width: 5 ¼ inches (total length from the front of the transom to the back of the motor slide)
- Motor Plate Height: 13 ¾ inches
- Max Rise (Travel): Up to 6 inches of travel, with the potential for up to 8 inches depending on the actuator mounting location.

Accessories Not Included

(Not Included): Transom mounting accessories
- 4 stainless steel bolts (½” x 3 ½”)
- 4 stainless steel lock nuts (½”)
- 8 stainless steel flat washers (½”)
- Motor clamp spacers
