10 feet of wiring from the electric actuator to the battery
Easy-to-follow DIY instructions
Key Benefits
Push-Button Adjustment: Raise or lower your motor in seconds using the included switch.
Better Shallow-Water Access: Lift your motor to help navigate shallower areas.
Performance Flexibility: Fine-tune your motor height for different loads and water conditions.
Potentially Reduced Drag: Proper motor height may improve handling, speed, and fuel efficiency.
Added Propeller and Lower-Unit Protection: Raising the motor can help reduce exposure to underwater obstacles.
Durable Construction: Built from high-quality, marine-grade aluminum for dependable use in demanding marine environments.
Load Balancing: Adjust motor height to achieve optimal boat balance and weight distribution, enhancing overall efficiency.
Product Specifications
- Compatibility: Fits 8–20 HP motors with or without factory power trim and tilt or manual tilt gas shock assist
- 25–40 HP Motors: Fits only motors without factory power trim and tilt or manual tilt gas shock assist
- Maximum Motor Weight: 180 lbs max

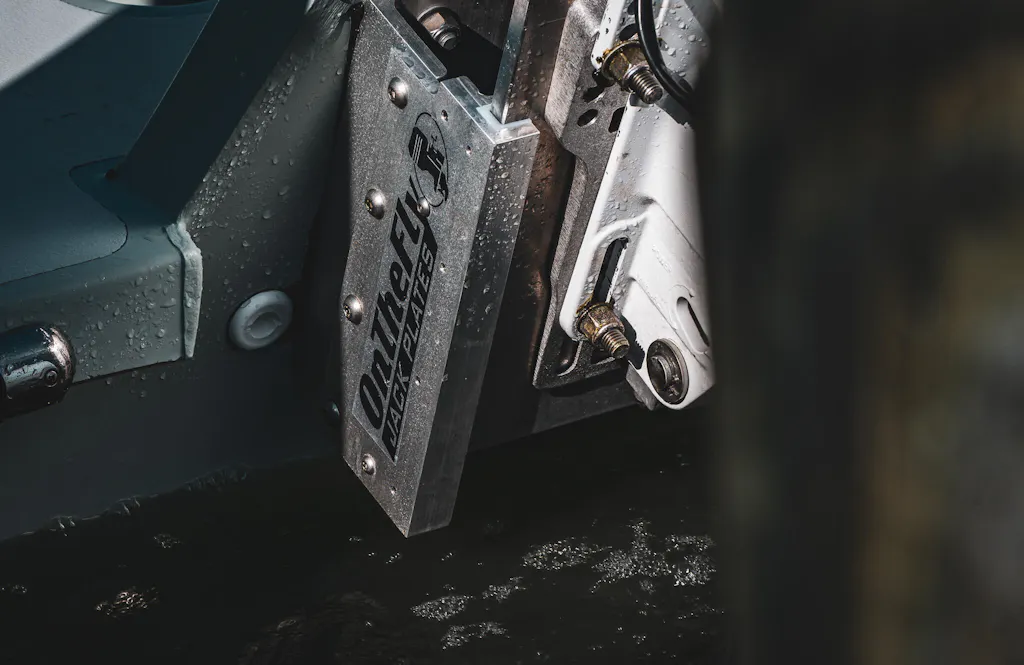

- Construction: Electric actuator mounted inside the jack plate housing.
- Warranty: 3-year housing warranty and 1-year electric actuator warranty.
- Pre-Drilled Mounting: Designed for quick installation with pre-drilled holes (8 inches apart horizontally and 8¼ inches apart vertically).
Weight and Dimension
- Weight: 23 lbs
- Height: 10 ½ inches
- Width (Transom Side): 12 ½ inches
- Width (Motor Side): 13 ¼ inches
- Setback/Width: 5 inches (total length from the front of the transom to the back of the motor slide)
- Motor Plate Height: 12 ½ inches
- Motor Mounting Plate (Inside Brackets): 10 ¾ inches
- Max Rise (Travel): 6 inches, with potential for up to 8 inches of rise depending on actuator mount location.
