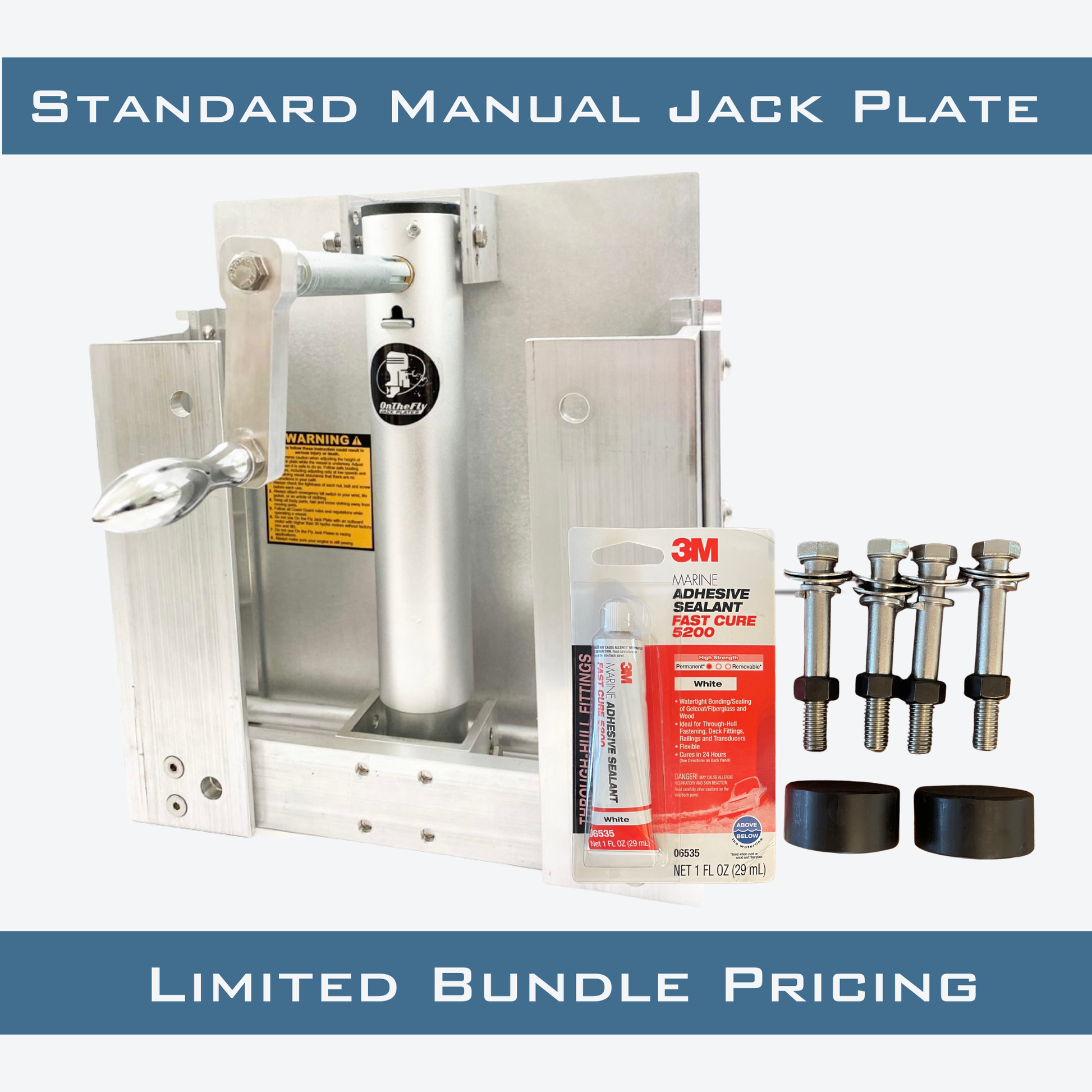

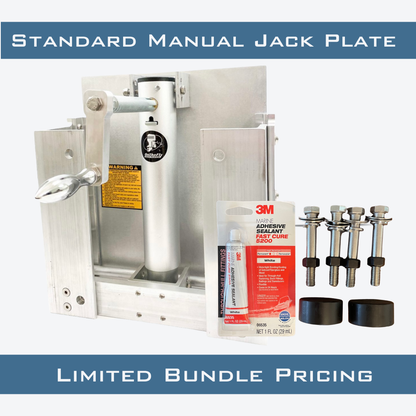

STANDARD MANUAL JACK PLATE
- Motor Size: Fits 8–20 HP motors with or without factory power trim and tilt or manual tilt gas shock assist
- 25–40 HP Motors: Fits only motors without factory power trim and tilt or manual tilt gas shock assist
- Maximum Motor Weight: 150 lbs
- Motor Mounting-Bracket Width: Your motor’s mounting bracket must be 10¾ inches wide or less at its widest point.
- Material: Durable, corrosion-resistant marine-grade aluminum
- Pre-Drilled Mounting Holes: 8 inches apart horizontally and 8¼ inches apart vertically
- Warranty: 3-year housing warranty and 1-year jack warranty
MOTOR CLAMP SPACERS:
- expertly crafted from durable round-cut UHMW (Ultra High Molecular Weight) polyethylene. Unlike traditional wooden spacers, our UHMW spacers offer superior strength and longevity, ensuring reliable support for your outboard motor.
MOUNTING HARDWARE:
- (4) 1/2" x 3 1/2" Mounting Bolts: High-strength .316 stainless steel bolts designed for maximum durability.
- (4) Lock Washers: Prevent loosening over time, ensuring your jack plate remains securely fastened.
- (8) Flat Washers: Provide additional support and distribute load evenly for a sturdy installation.
3M 5200:
- 3M 5200 Marine Adhesive Sealant is a high-strength, permanent marine sealant designed to create a durable, watertight bond above and below the waterline. Known for its exceptional adhesion and flexibility, it seals and protects against water intrusion, vibration, and harsh marine environments.
