Standard Plug and Play Electric Jack Plate (up to 40hp)

Standard Plug and Play Electric Jack Plate (up to 40hp)

$1,250.00
$1,250.00
Sale Sold out
Shipping calculated at checkout.

The Standard Electric Jack Plate fits if:

  • Outboard motor weighs 180 lbs or less
  • The mounting bracket is 10 ¾ inches wide or less
  • Your motor is 8-20 hp, with or without:
    • Factory trim and tilt
    • Manual tilt gas shock assist
  • Your motor is 25-40 hp and does not have:
    • Factory trim and tilt
    • Manual tilt gas shock assist

Important: Your motor must meet all three requirements: weight, mounting-bracket width and horsepower/tilt configuration.

Not Compatible with:

  • 25–40 hp motors with factory power trim and tilt or manual tilt gas shock assist
  • Motors weighing more than 180 lbs
  • Motors with mounting brackets wider than 10 ¾ inches

If your motor meets any of these conditions, you will need the Large Unit

Not Sure? Confirm Your Fit With Our Jack Plate finder Quiz

Introducing our Standard Electric Plug and Play On The Fly Jack Plate, the most user-friendly jack plate on the market! Engineered for effortless operation, this innovative jack plate features a wireless remote, a waterproof battery case housing a 24V Kobalt drill battery, and a receiver for seamless wireless control.

Easily raise and lower your outboard motor at the push of a button from anywhere on your boat, allowing for quick adjustments in mere seconds. With simple mounting instructions and quick connectors for the battery box, installation is a breeze—just mount the jack plate and you’re ready to hit the water!

Included With Your jack Plate:

  • Standard Jack plate housing
  • On The Fly electric actuator
  • Water-resistant wireless remote
  • Waterproof Pelican case
  • Wireless remote receiver
  • 24V battery
  • Battery charger
  • Quick-connect wiring

Experience the convenience and performance of the Standard Electric Plug and Play On The Fly Jack Plate—the ultimate upgrade for your boating adventures!

Product Specifications

- Compatibility: Fits 8–20 HP motors with or without factory power trim and tilt or manual tilt gas shock assist
- 25–40 HP Motors: Fits only motors without factory power trim and tilt or manual tilt gas shock assist
- Maximum Motor Weight: 180 lbs max
- Efficient Design: The electric actuator is discreetly mounted inside the jack plate housing, ensuring a clean look and easy maintenance.
- Warranties: 3-year housing warranty and a 1-year electric actuator warranty
- Pre-Drilled for Easy Setup: The transom mounting holes are pre-drilled for convenience, measuring 8 inches across and 8 ¼ inches down from each other.

Weight and Dimension

- Jack Plate: 23 lbs
- Battery Case: 4 lbs
- Height: 10 ½ inches
- Width (Transom Side): 12 ¼ inches
- Width (Motor Side): 13 ¼ inches
- Setback/Width: 5 inches (total length from the front of the transom to the back of the motor slide)
- Motor Plate Height: 12 ½ inches
- Motor Mounting Plate (Inside Brackets): 10 ¾ inches

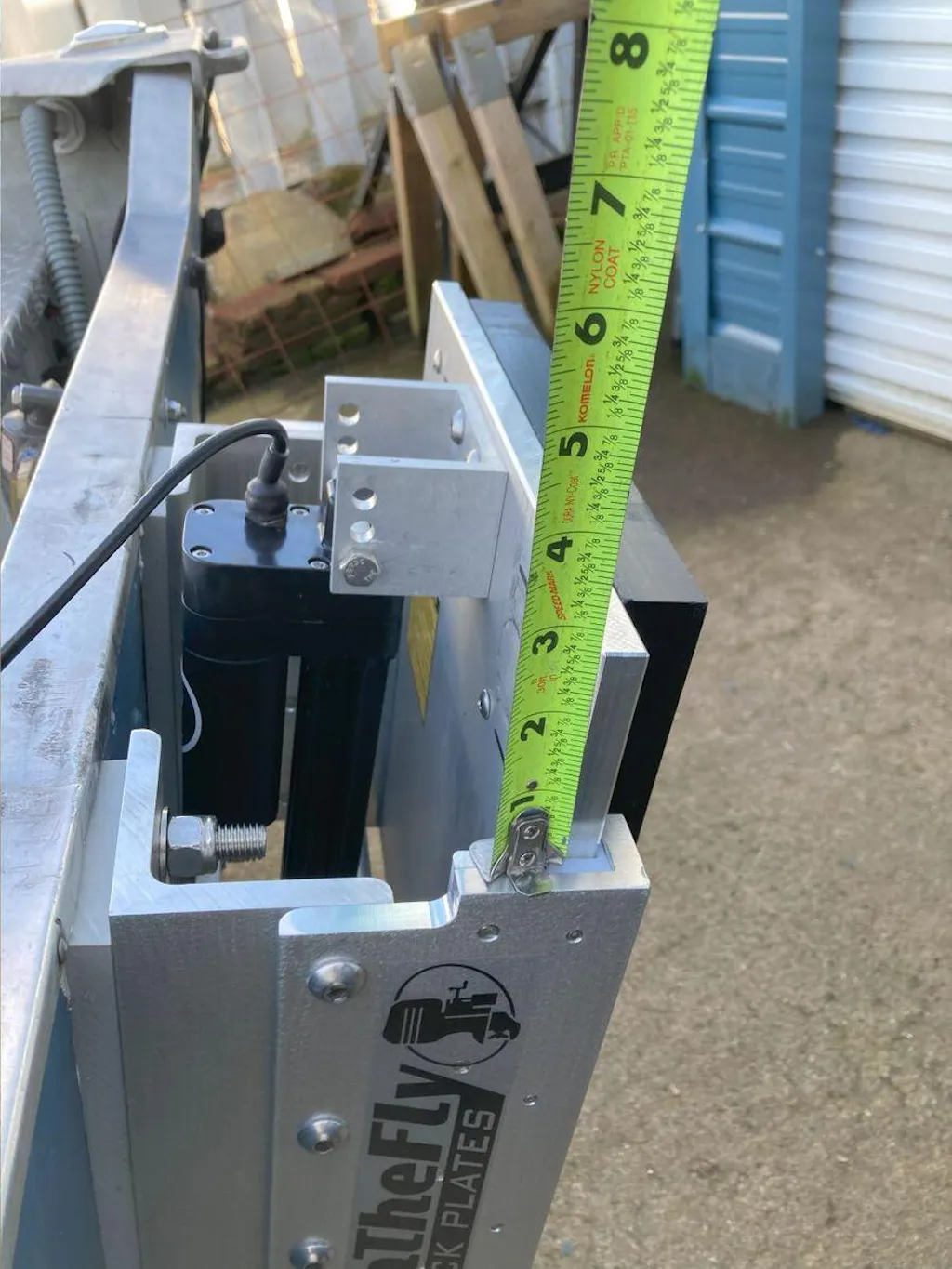

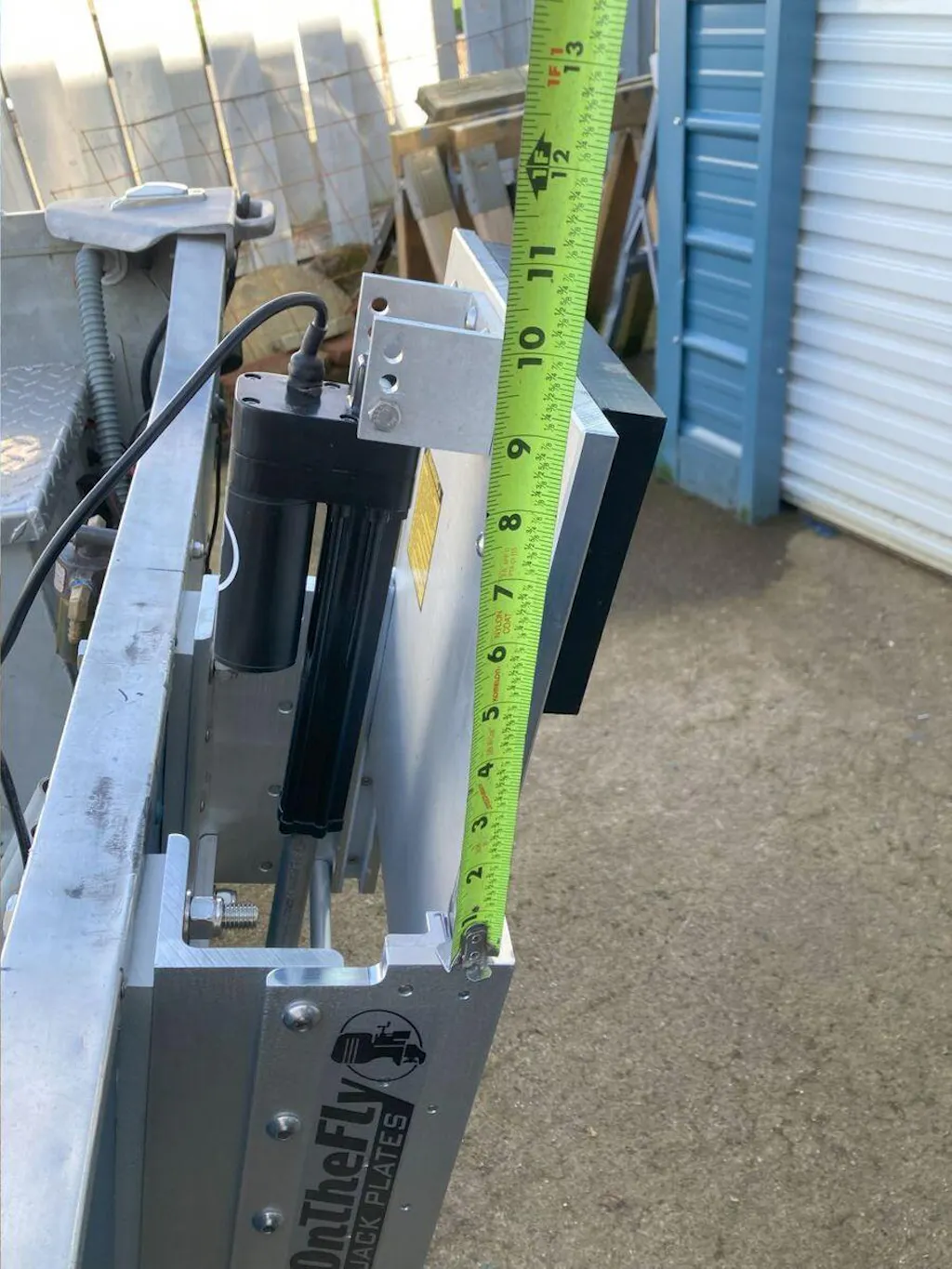

- Max Rise (Travel): Up to 6 inches of travel, with the potential for up to 8 inches depending on the actuator mounting location.

Accessories Not Included

(Not Included) Transom mounting accessories:
- 4 stainless steel bolts (½” x 3 ½”)
- 4 stainless steel lock nuts (½”)
- 8 stainless steel flat washers (½”)
- Motor clamp spacers

  • 30-Day Money-Back Guarantee
  • 3-Year Housing & 1-Year Jack Warranty
  • Ships in 1-2 Business Days
