Standard Electric Jack Plate (up to to 40hp)

Standard Electric Jack Plate (up to to 40hp)

Regular price $950.00
Regular price Sale price $950.00
Sale Sold out
Shipping calculated at checkout.

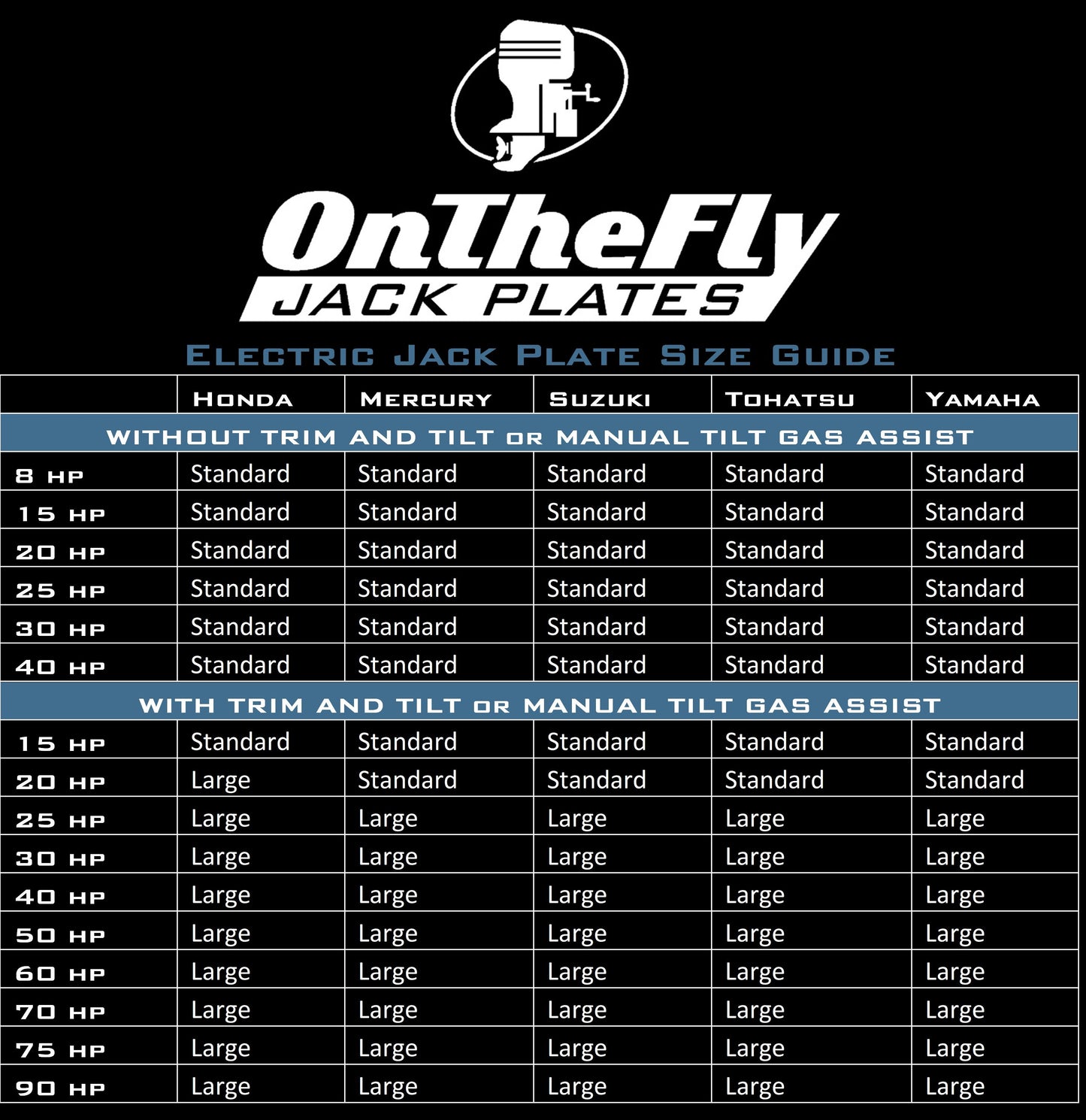

Compatibility: This Standard Electric Jack Plate is designed for outboard motors up to 40hp without factory electric trim and tilt, featuring a standard BIA bolt pattern. It is compatible with motors in the 0-20hp range with electric trim and tilt but does not fit 25-40hp motors equipped with factory electric trim and tilt.

The Standard Electric On The Fly Jack Plate is the quietest electric jack plate on the market, expertly designed for fast and effortless height adjustments while you’re on the water. With a simple push of a button, you can raise or lower your outboard motor in seconds, allowing you to maximize your time spent boating. Say goodbye to adjustments that typically take 20 minutes; our innovative design offers unmatched convenience and performance for every boating adventure.

Constructed from high-quality marine-grade materials, this jack plate is built for durability and longevity. Installation is straightforward, thanks to easy-to-follow DIY instructions, making it accessible for both seasoned boaters and first-time users alike. Whether you’re cruising at high speeds or navigating through shallow waters, our adjustable jack plate adapts to your needs and enhances your efficiency on the water.

What Is a Jack Plate for an Outboard Motor? A jack plate is a mounting device that elevates or lowers your outboard motor, providing essential adjustments to optimize your boat's performance. Here’s why a jack plate is a must-have addition:

  1. Height Adjustment: Effortlessly raise or lower your motor to improve performance relative to the waterline.
  2. Enhanced Performance: Reduced drag leads to increased speed, fuel efficiency, and better handling.
  3. Improved Trim and Tilt: Achieve finer control of motor positioning in various water conditions.
  4. Transom and Propeller Protection: Elevated mounting positions protect your transom from water and debris.
  5. Load Balancing: Adjust motor height to achieve optimal boat balance and weight distribution, enhancing overall efficiency.

Overall, a jack plate is an invaluable asset for boaters seeking optimal performance and versatility from their outboard motors.

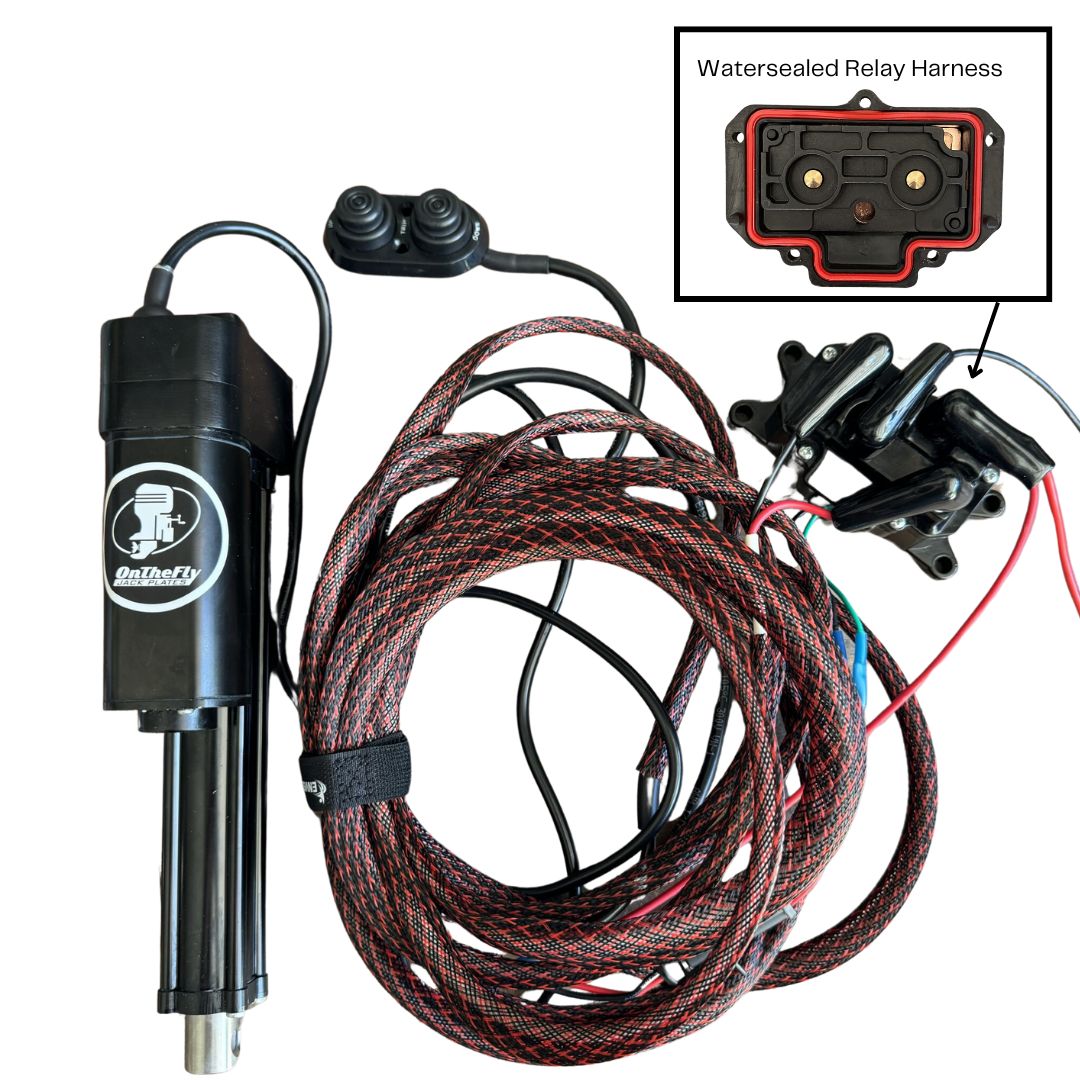

Included Accessories

  • Jack plate housing
  • On The Fly electric actuator

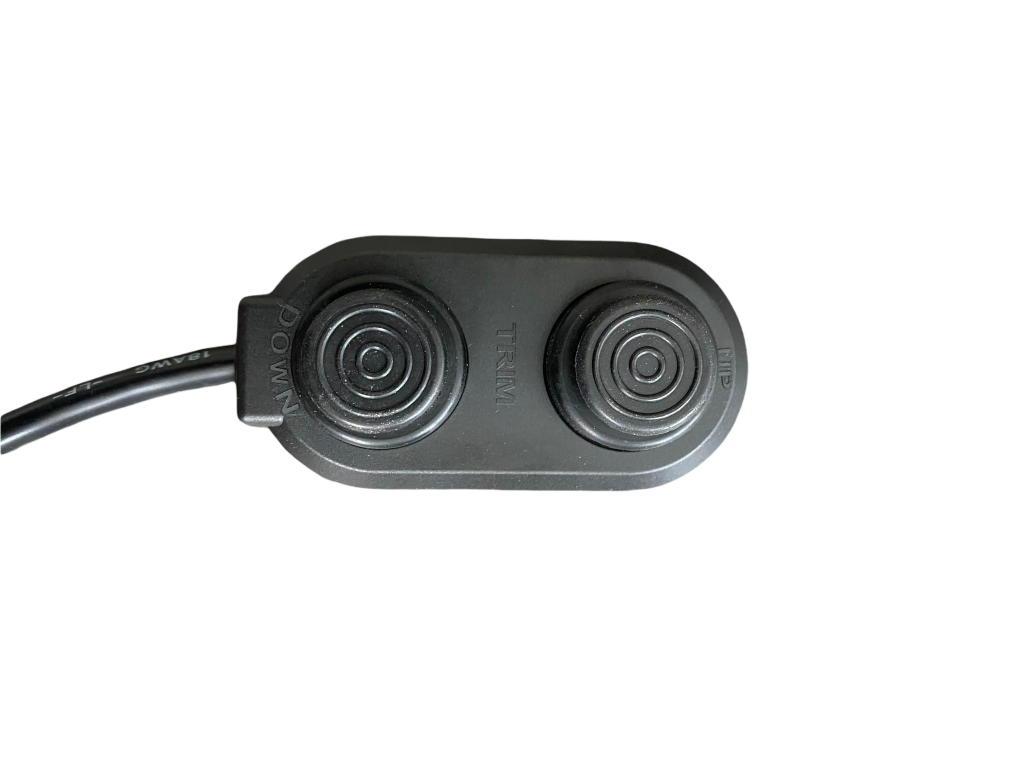

  • Up/Down switch
  • Relay harness

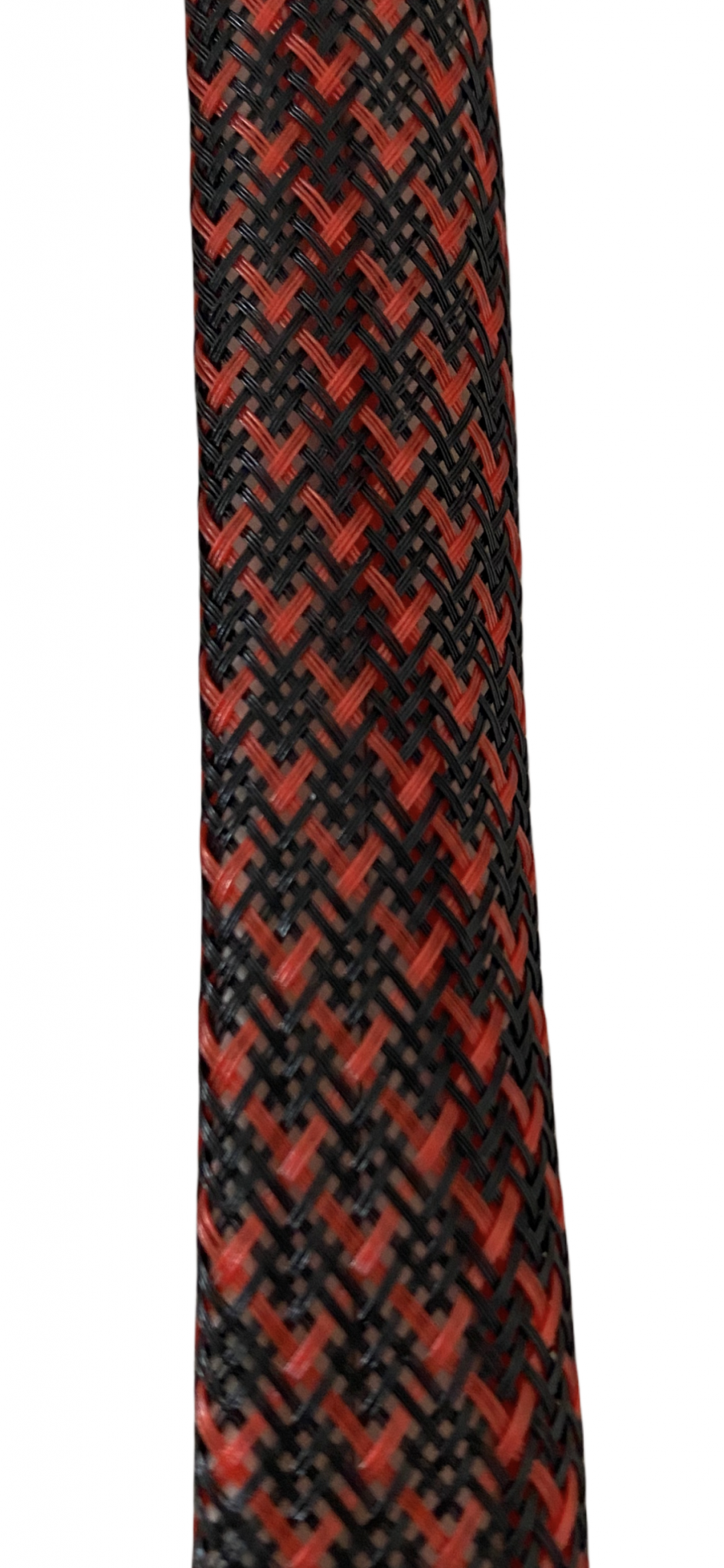

  • 10 feet of wiring from the actuator to the battery

Choose the Standard Electric On The Fly Jack Plate for reliable performance, seamless adjustments, and peace of mind on your next boating adventure. Experience the difference and enjoy every moment on the water!

Product Specifications

- Compatibility: Approved for up to 40hp outboard motors without electric trim and tilt or standard BIA bolt pattern; works with 0-20hp motors with electric trim and tilt.

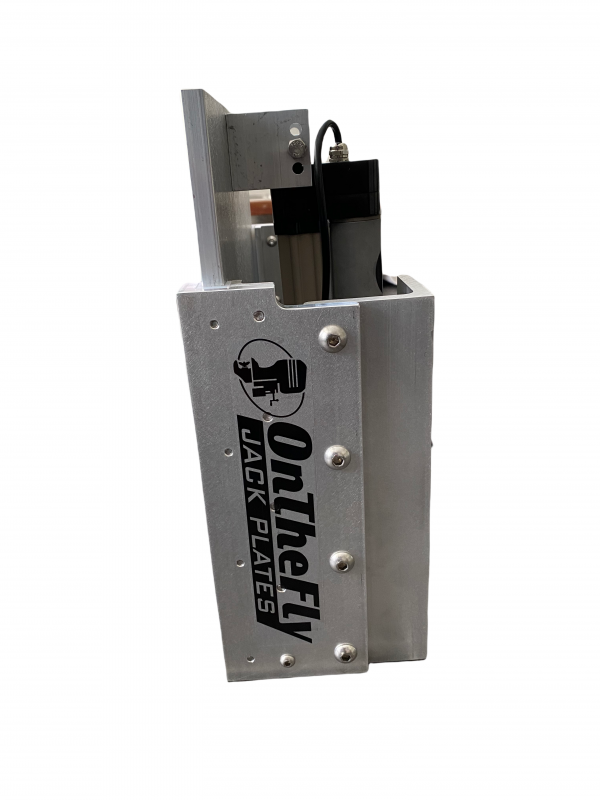

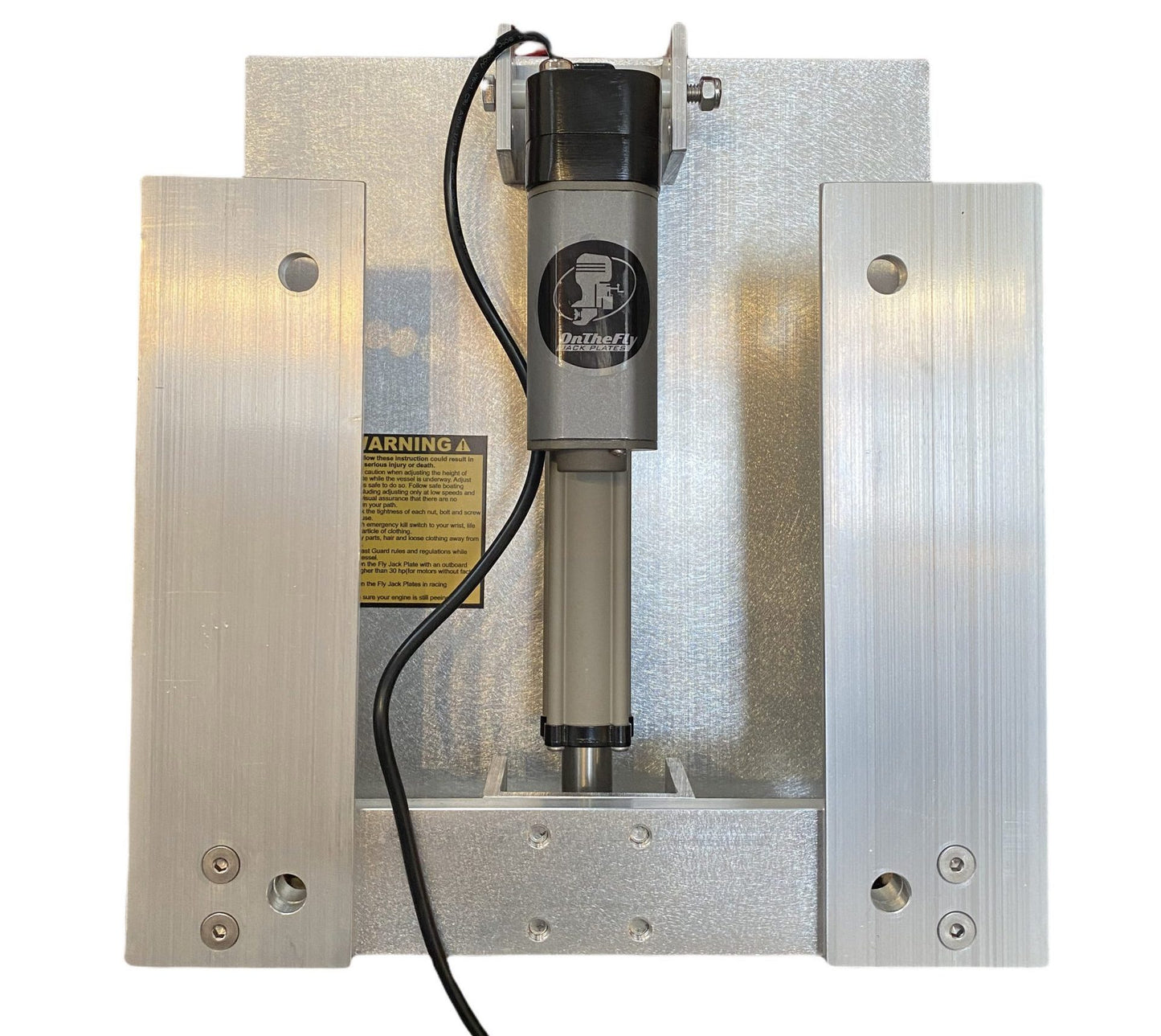

- Construction: Electric actuator mounted inside the jack plate housing.
- Warranty: 3-year warranty on the jack plate housing and 1-year warranty on the electric actuator.
- Pre-Drilled Mounting: Designed for quick installation with pre-drilled holes (8 inches apart horizontally and 8¼ inches apart vertically).

Weight and Dimension

- Weight: 23 lbs
- Height: 10 ½ inches
- Width (Transom Side): 12 ½ inches
- Width (Motor Side): 13 ¼ inches
- Setback: 5 inches (total length from the front of the transom to the back of the motor slide)
- Motor Plate Height: 12 ½ inches
- Motor Mounting Plate (Inside Brackets): 10 ¾ inches
- Max Rise (Travel): 6 inches, with potential for up to 8 inches of rise depending on actuator mount location.

Accessories Not Included

(Not Included): Transom mounting accessories
- 4 stainless steel bolts (½” x 3 ½”)
- 4 stainless steel lock nuts (½”)
- 8 stainless steel flat washers (½”)
- Motor clamp spacers
