Large Manual Jack Plate (up to 50hp motors) + Install Kit (Complete Setup) - On The Fly Jack Plates

Large Manual Jack Plate (up to 50hp motors) + Install Kit (Complete Setup) - On The Fly Jack Plates

$699.00
$758.98 $699.00
Sale Sold out
Shipping calculated at checkout.

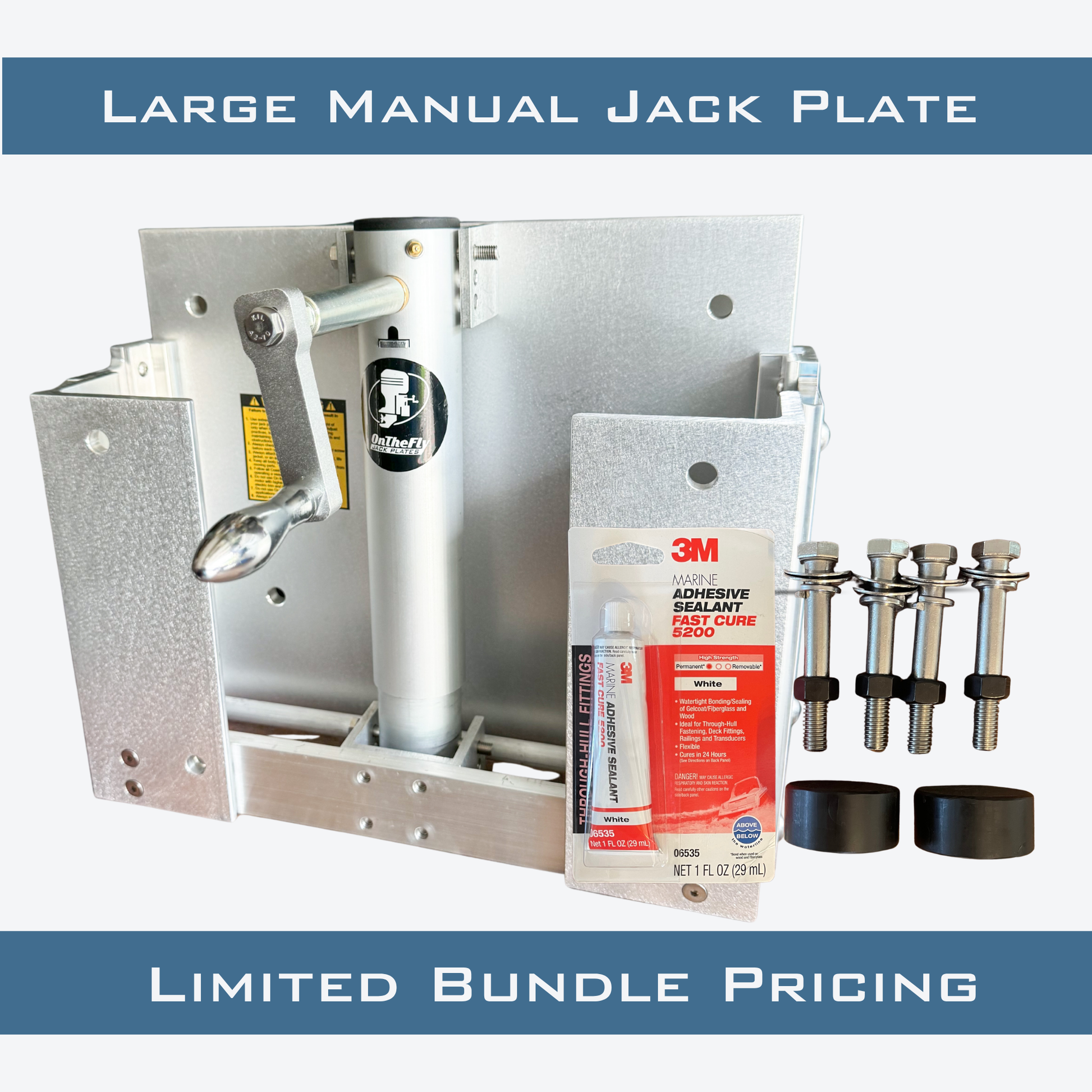

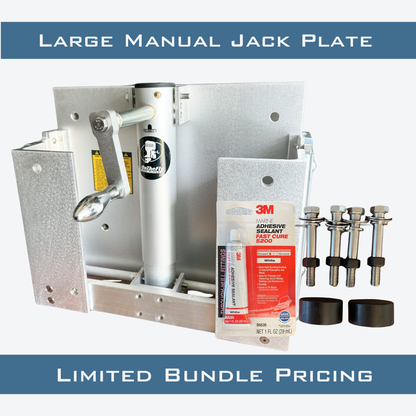

LIMITED BUNDLE PRICING - Large Manual Jack Plate (up to 50hp motors) + Install Kit (Complete Setup)

$758.98 separately → $699 bundle

This complete bundle includes your Large Manual Jack Plate and matched mounting hardware & sealant — no guesswork, no extra trips, just a solid, reliable setup built for performance.

___________________________________________________________________________________________

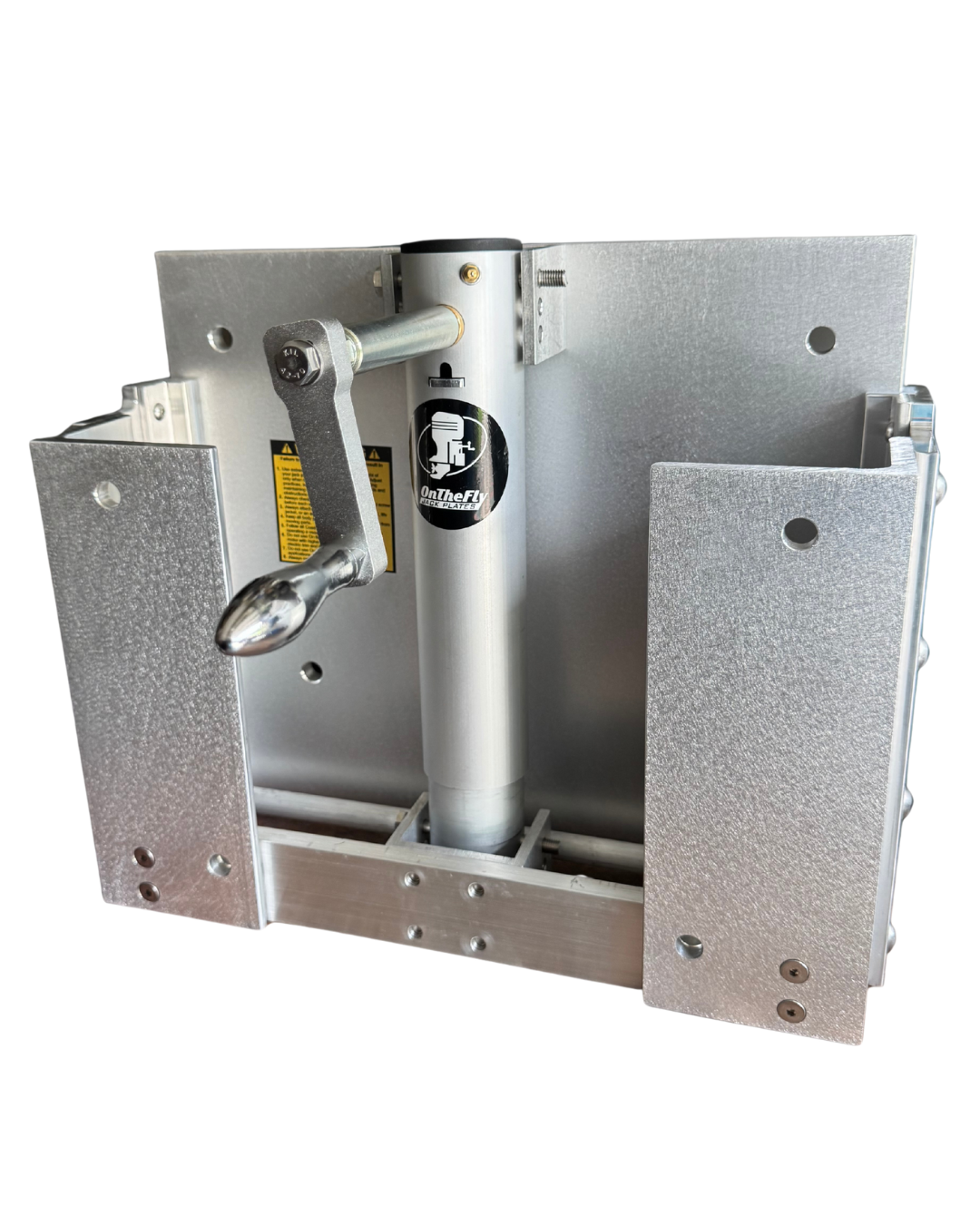

The Large Manual Jack Plate, designed for outboard motors up to 50hp with trim and tilt capabilities. Featuring a newly upgraded design with a higher gear ratio, this jack plate ensures effortless motor lifting for enhanced performance on the water.

What Is a Jack Plate for an Outboard Motor?

A jack plate is a mounting device that elevates or lowers your outboard motor, providing essential adjustments to optimize boat performance. Here’s why a jack plate is an essential addition:

  1. Height Adjustment: Easily raise or lower your motor for better performance relative to the waterline.
  2. Enhanced Performance: Reduced drag increases speed, fuel efficiency, and handling.
  3. Improved Trim and Tilt: Gain finer control of motor positioning in various water conditions.
  4. Transom Protection: Higher mounting positions protect against water and debris.
  5. Load Balancing: Adjust motor height for better boat balance and weight distribution, enhancing efficiency.

Overall, a jack plate is a valuable asset for boaters seeking peak performance and versatility from their outboard motors.

Please Note: Carefully review the product measurements to ensure compatibility with your motor. Feel free to contact us for guidance!

Product Specifications

LARGE MANUAL JACK PLATE
- Compatibility: Approved for up to 50hp outboard motors (with factory trim and tilt); 230 lbs max
- Material: High-grade marine aluminum for durability and corrosion resistance
- Warranty: 3-year warranty on housing, 1-year warranty on the jack.
- Pre-Drilled Mounting: Transom mounting for quick and easy setup.

MOTOR CLAMP SPACERS:
- expertly crafted from durable round-cut UHMW (Ultra High Molecular Weight) polyethylene. Unlike traditional wooden spacers, our UHMW spacers offer superior strength and longevity, ensuring reliable support for your outboard motor.

MOUNTING HARDWARE:
- (4) 1/2" x 3 1/2" Mounting Bolts: High-strength .316 stainless steel bolts designed for maximum durability.
- (4) Lock Washers: Prevent loosening over time, ensuring your jack plate remains securely fastened.
- (8) Flat Washers: Provide additional support and distribute load evenly for a sturdy installation.

3M 5200:
- 3M 5200 Marine Adhesive Sealant is a high-strength, permanent marine sealant designed to create a durable, watertight bond above and below the waterline. Known for its exceptional adhesion and flexibility, it seals and protects against water intrusion, vibration, and harsh marine environments.

Weight and Dimension

LARGE MANUAL JACK PLATE
- Weight: 30.6 lbs
- Height: 10 ½ inches
- Length (Transom Side): 16 1/8 inches
- Length (Motor Side): 17 inches
- Setback/Width: 5 ¼ inches from the transom to the motor slide back
- Motor Plate Height: 13 ¾ inches
- Max Rise (Travel): 5 ½ inches, with potential for up to 7 ¾ inches depending on mount location.

MOUNTING HARDWARE
- (4) 1/2″ x 3 1/2″ Mounting Bolts
- (4) Lock Washers
- (8) Flat Washers

MOTOR SPACER CLAMPS
- (2) 1-inch round pucks

Accessories Not Included

Recommended LocTite during installtion
