Standard Plug and Play Electric Jack Plate (up to 40hp)

Standard Plug and Play Electric Jack Plate (up to 40hp)

$1,250.00
$1,250.00
Sale Sold out
Shipping calculated at checkout.

Compatibility: Designed for outboard motors up to 40hp. It is compatible with motors in the 0-20hp range with electric trim and tilt but does not fit 25-40hp motors equipped with factory electric trim and tilt or standard BIA bolt pattern.

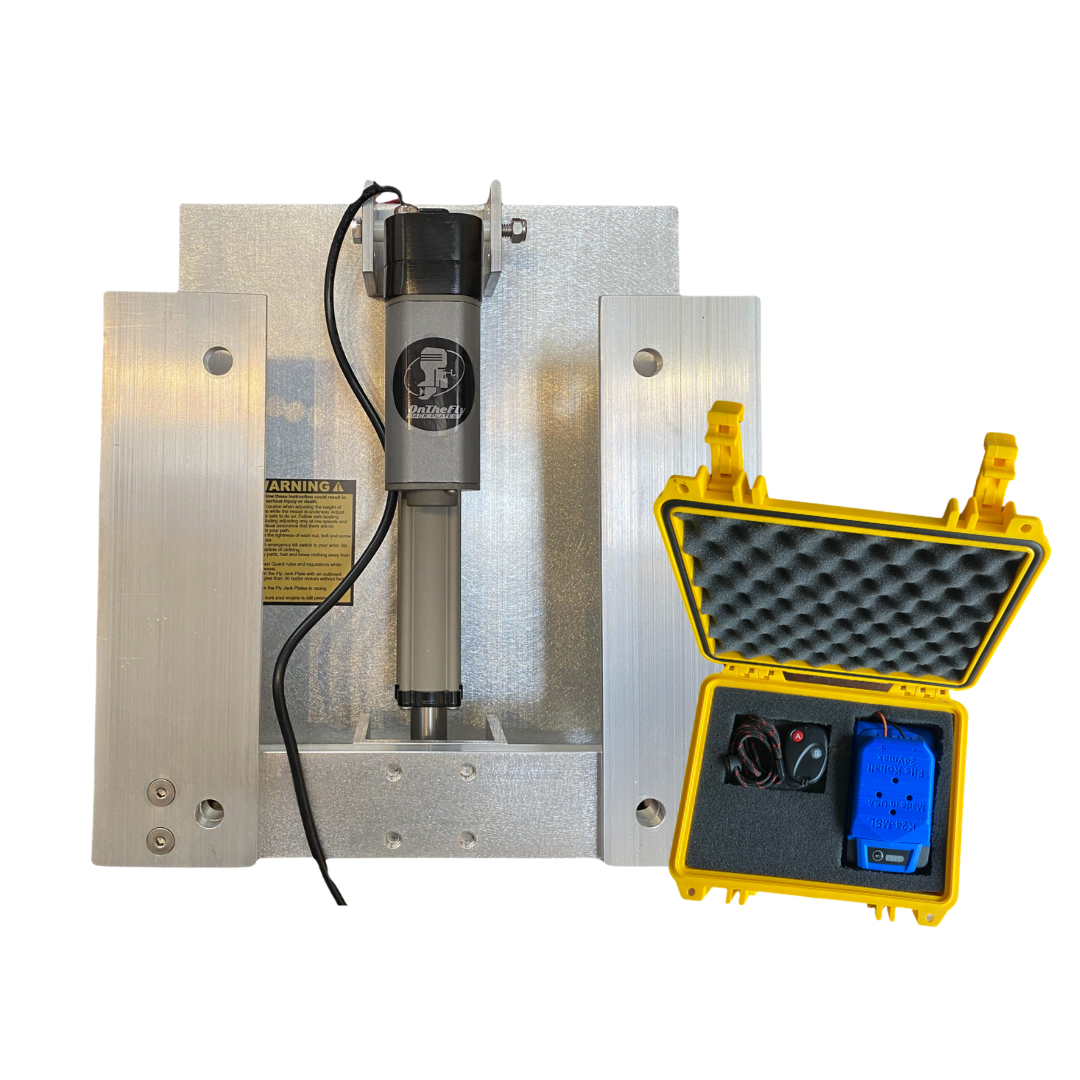

Introducing our Standard Electric Plug and Play On The Fly Jack Plate, the most user-friendly jack plate on the market! Engineered for effortless operation, this innovative jack plate features a wireless remote, a waterproof battery case housing a 24V Kobalt drill battery, and a receiver for seamless wireless control.

Easily raise and lower your outboard motor at the push of a button from anywhere on your boat, allowing for quick adjustments in mere seconds. With simple mounting instructions and quick connectors for the battery box, installation is a breeze—just mount the jack plate and you’re ready to hit the water!

Included Accessories:

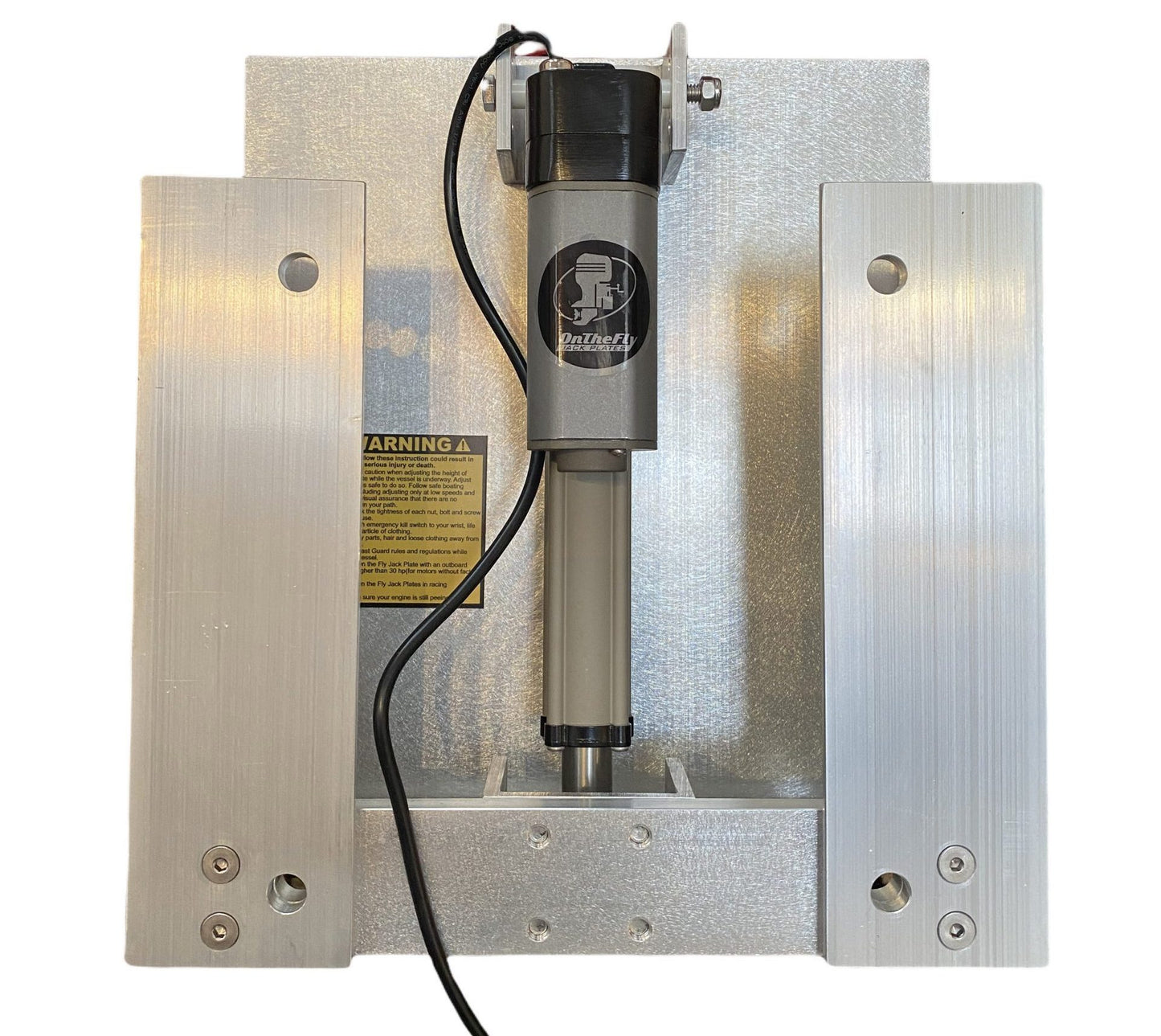

  • Jack plate housing
  • On The Fly electric actuator
  • Water-resistant wireless remote

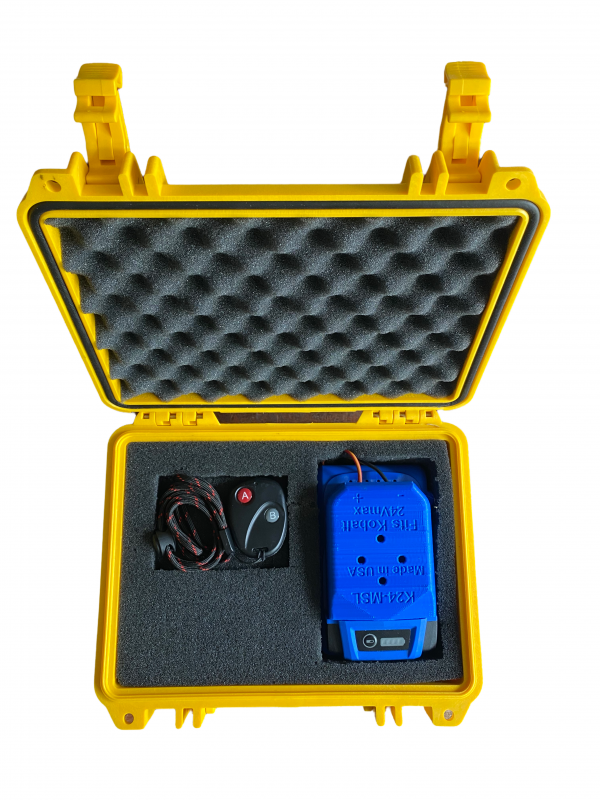

  • Waterproof Pelican case
  • Wireless remote receiver
  • 24V battery
  • Battery charger

Note: This product is PATENT PENDING.

Experience the convenience and performance of the Standard Electric Plug and Play On The Fly Jack Plate—the ultimate upgrade for your boating adventures!

Product Specifications

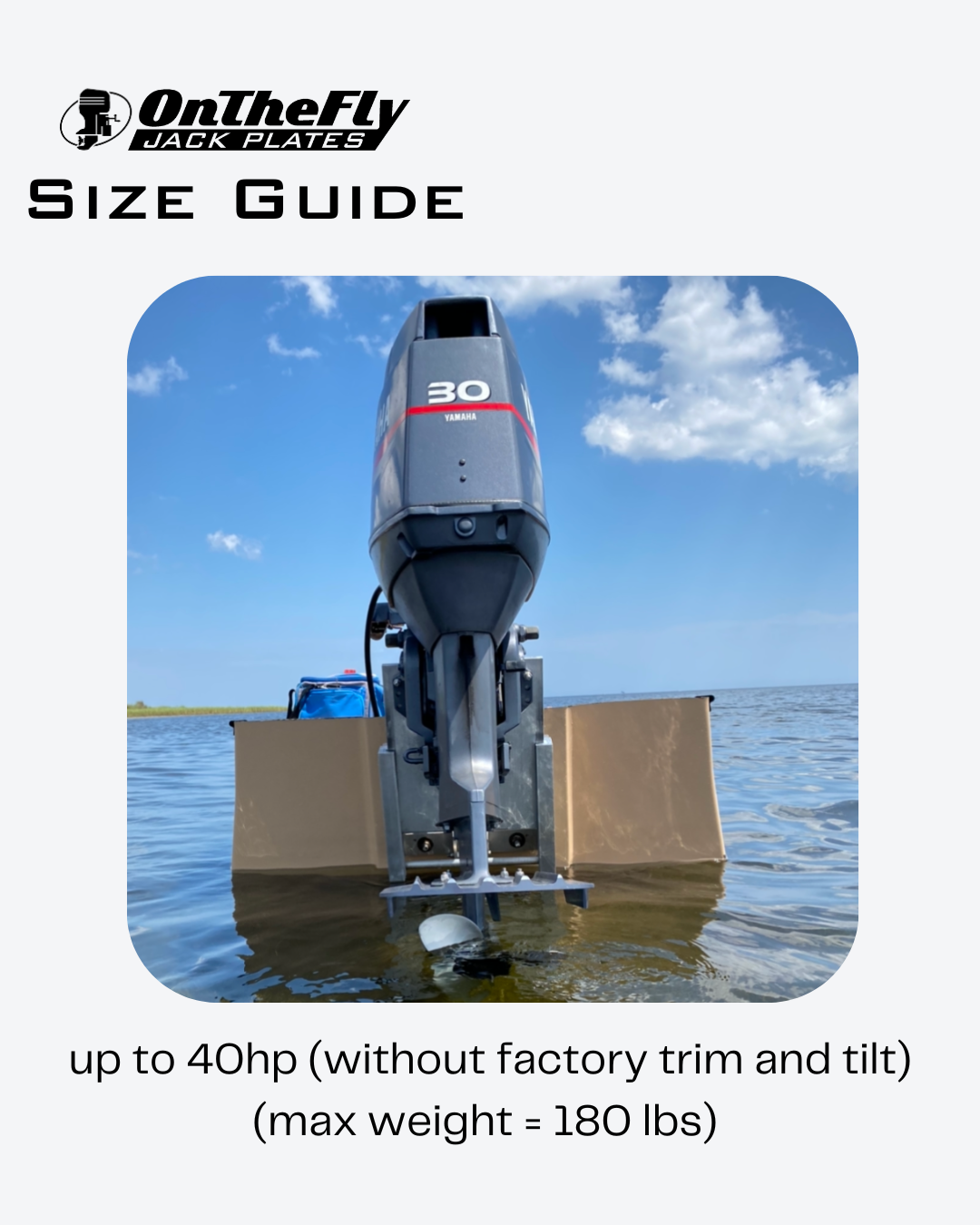

- Compatibility: Approved for up to 40hp motors (for motors without factory trim and tilt or standard BIA bolt pattern). Also works with 0-20hp motors equipped with electric trim and tilt.
- Efficient Design: The electric actuator is discreetly mounted inside the jack plate housing, ensuring a clean look and easy maintenance.
- Warranties: Enjoy peace of mind with a 3-year warranty on the jack plate housing and a 1-year warranty on the electric actuator.

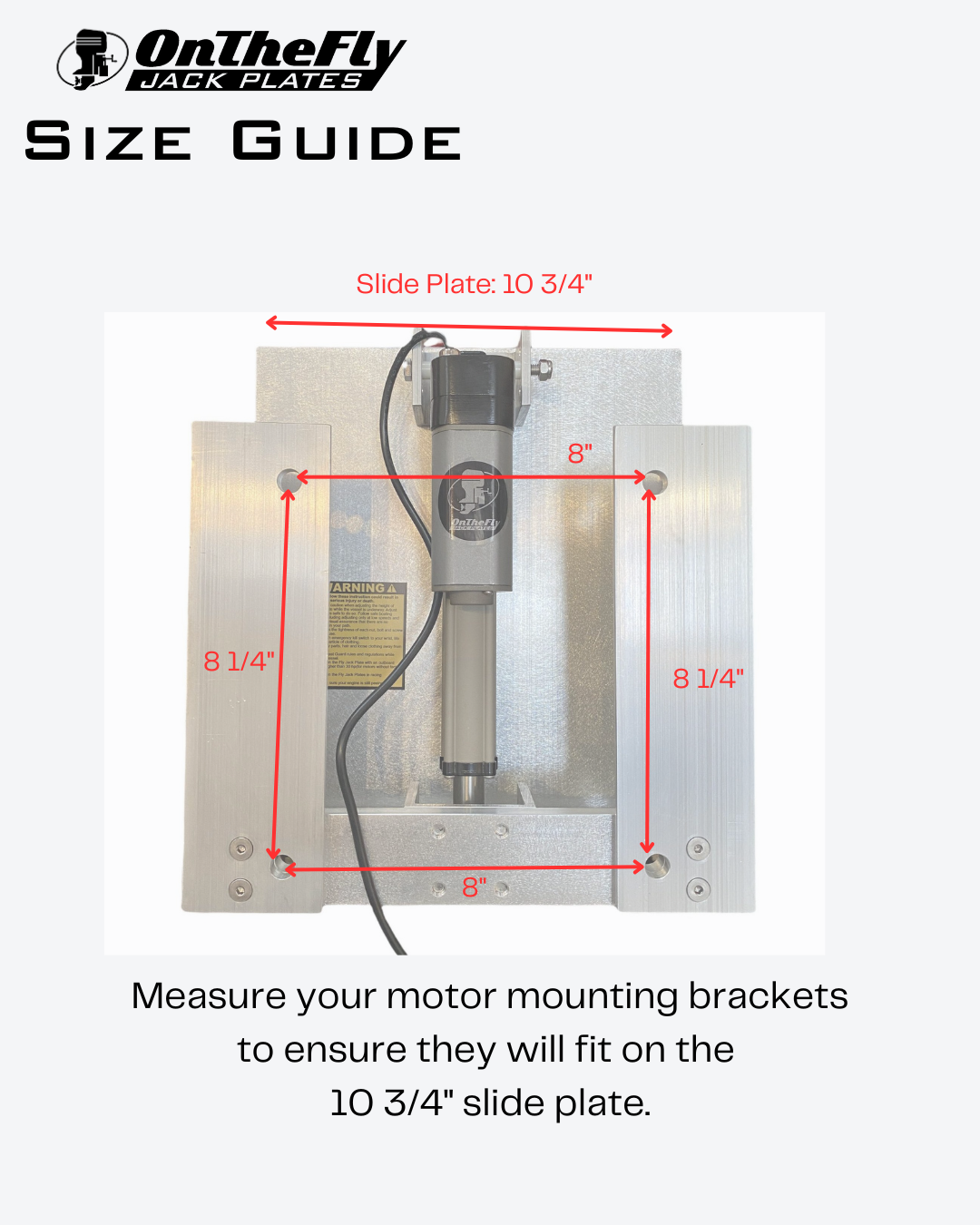

- Pre-Drilled for Easy Setup: The transom mounting holes are pre-drilled for convenience, measuring 8 inches across and 8 ¼ inches down from each other.

Weight and Dimension

- Jack Plate: 23 lbs
- Battery Case: 4 lbs
- Height: 10 ½ inches
- Width (Transom Side): 12 ¼ inches
- Width (Motor Side): 13 ¼ inches
- Setback: 5 inches (total length from the front of the transom to the back of the motor slide)
- Motor Plate Height: 12 ½ inches
- Motor Mounting Plate (Inside Brackets): 10 ¾ inches

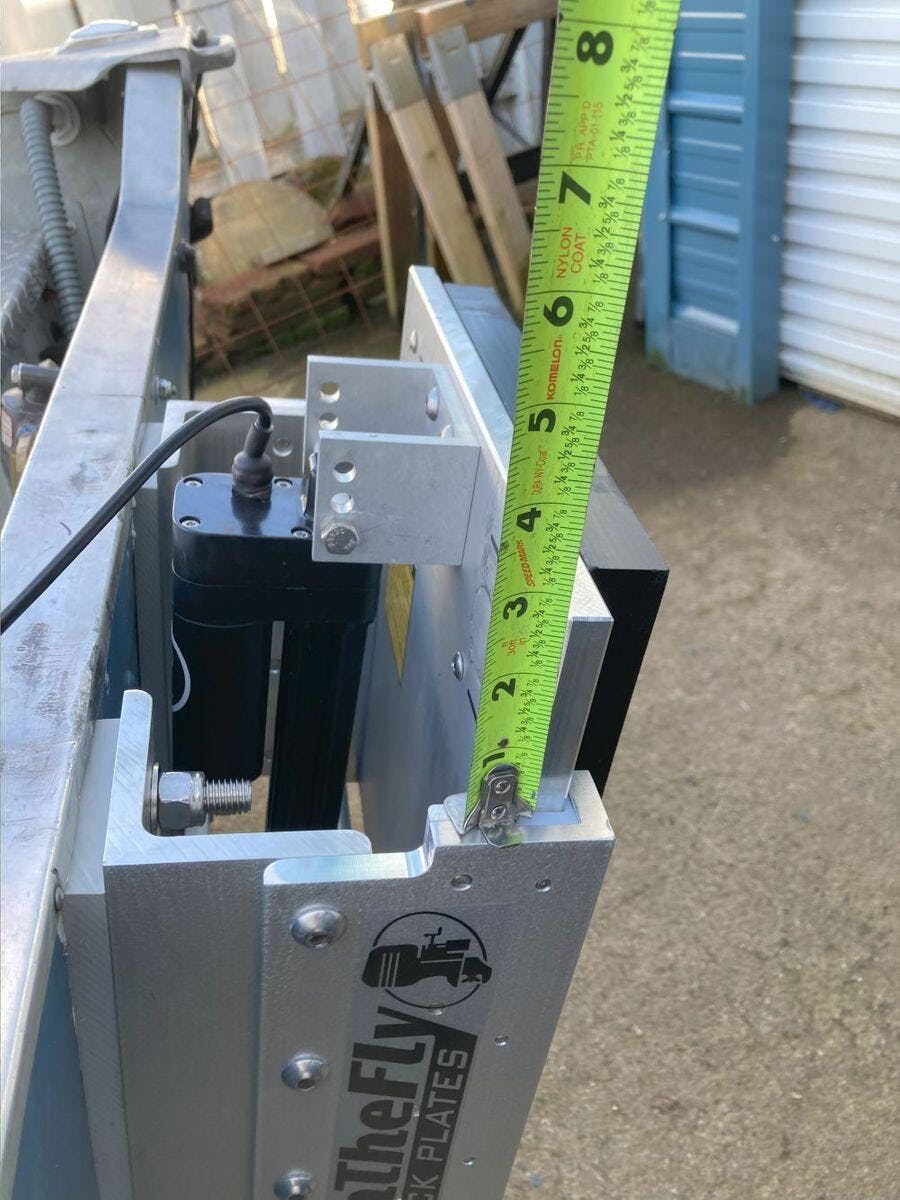

- Max Rise (Travel): Up to 6 inches of travel, with the potential for up to 8 inches depending on the actuator mounting location.

Accessories Not Included

(Not Included) Transom mounting accessories:
- 4 stainless steel bolts (½” x 3 ½”)
- 4 stainless steel lock nuts (½”)
- 8 stainless steel flat washers (½”)
- Motor clamp spacers
